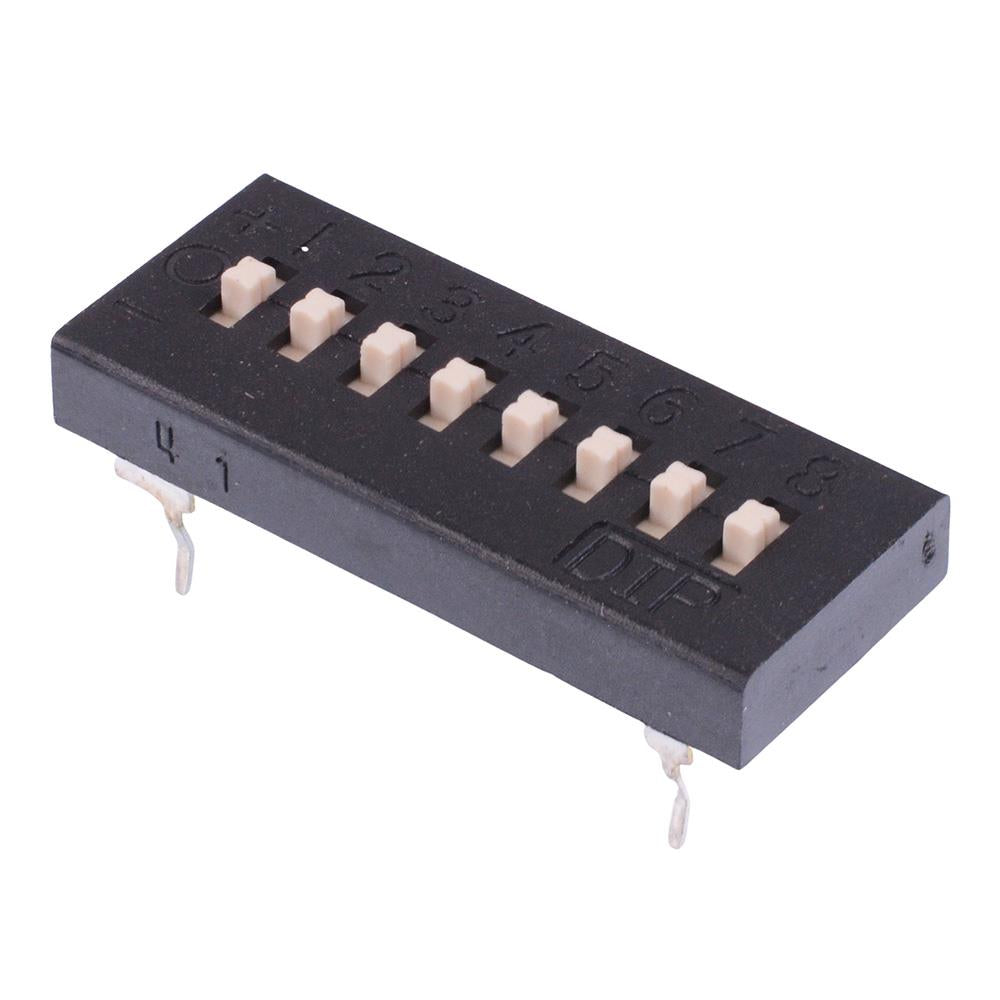

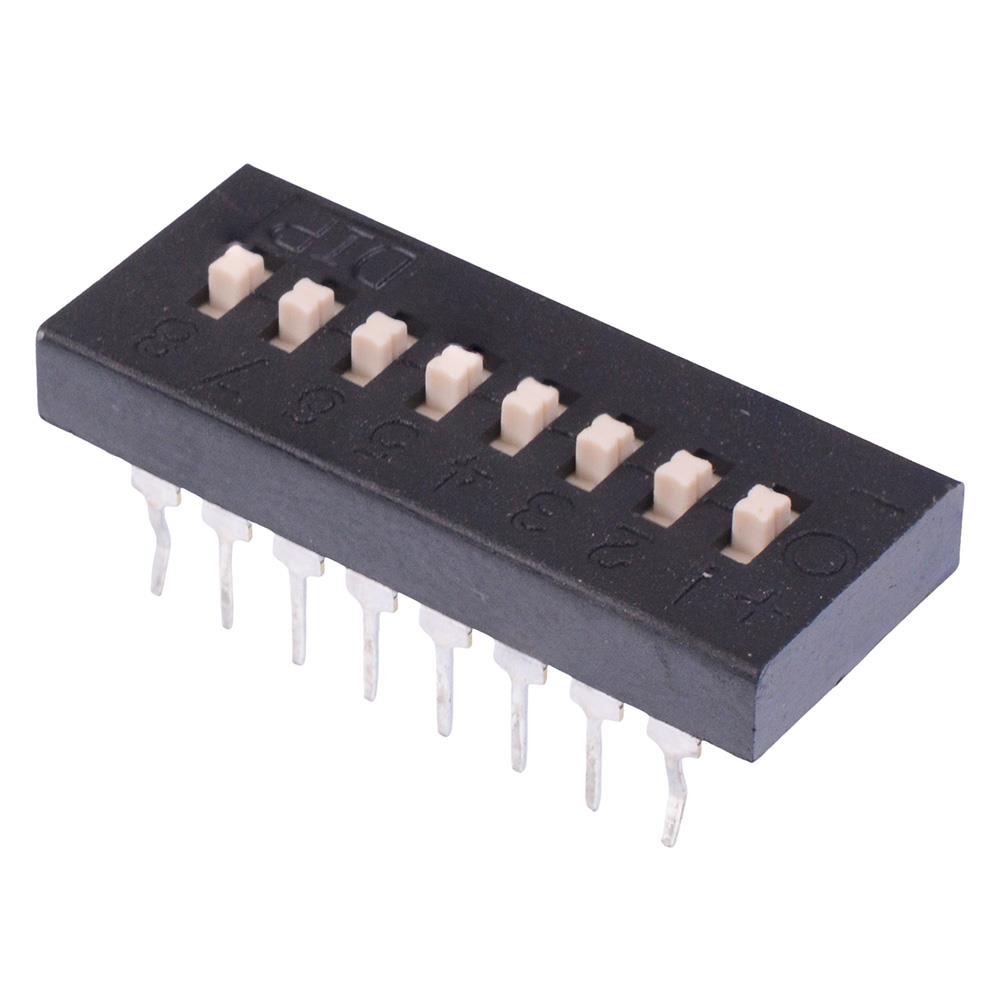

TDS08V 8 Way Tri-State DIP Switch 2.54mm

TDS08V 8 Way Tri-State DIP Switch 2.54mm 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	8
Operating Temperature	-20°C to +70°C
Pitch	2.54mm
Product Series	TDS
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The TDS08V is a 8 positon dip switch by socoje, featuring SPST contacts and raised actuator. The switch features 3 state setting and through hole terminals designed for PCB mounting.

8 positions

Tri-state

SPST contacts

Through hole mounting

Rating: 25mA 24VDC

2.54mm pitch
