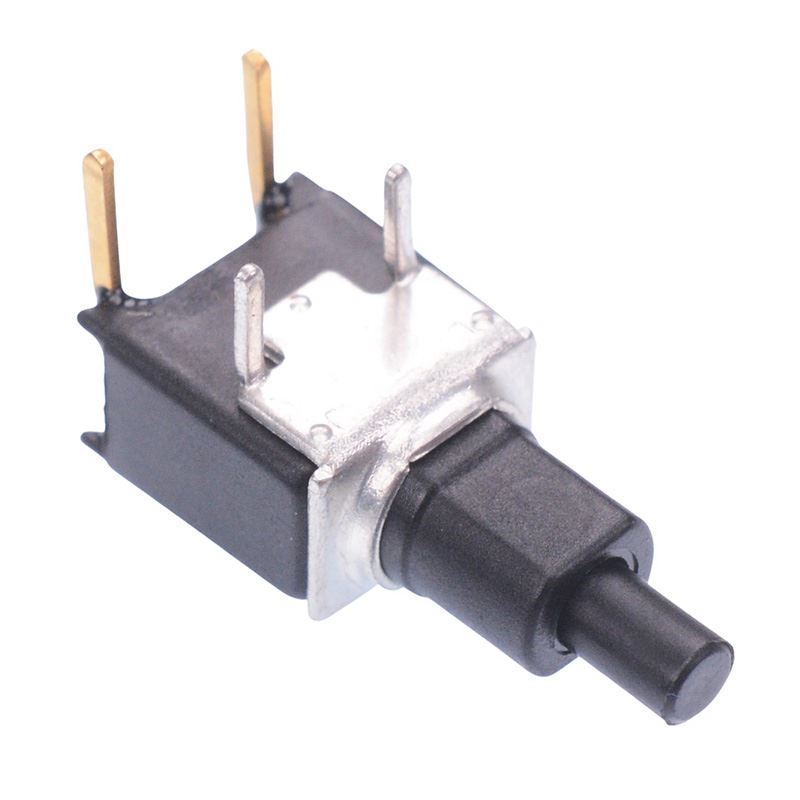

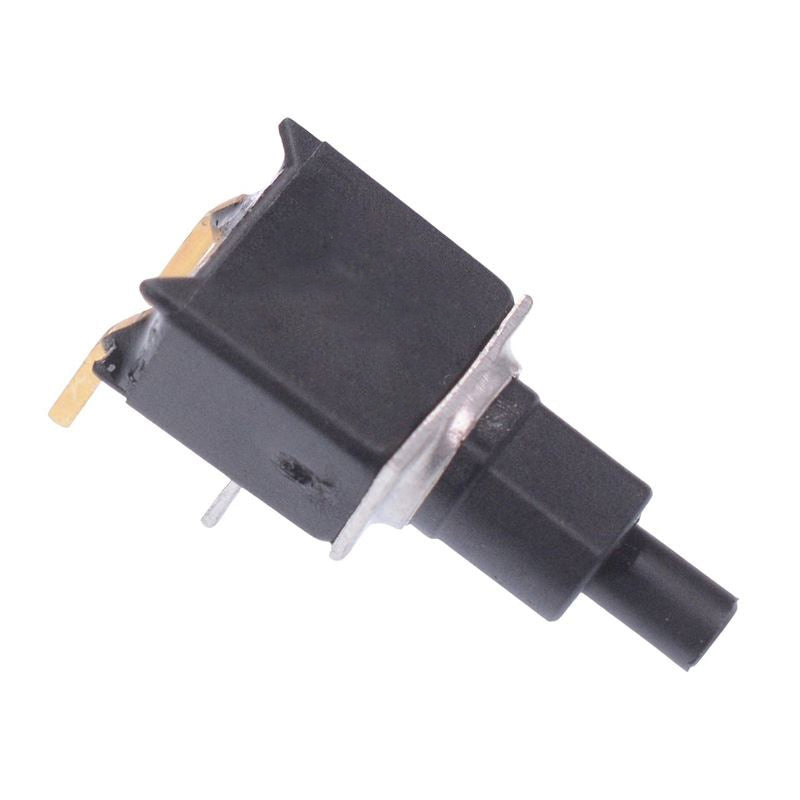

TP33W008000 Off-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPST

TP33W008000 Off-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	0.4A 20VAC/DC
Current Rating	0.4A
Illuminated	No
Electrical Life	60,000 Cycles
Illumination Colour	Non Illuminated
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 85°C
Pitch	2.54mm
Product Series	TP
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

TP33W008000 Off-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPST
The TP33W008000 is a sub-miniature momentary push button switch manufactured by socoje featuring SPST contacts, designed for right angle horizontal PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.

Off-(On) momentary operation

SPST contacts

Right angle horizontal PCB mounting

Gold plated brass terminals

2.54mm pitch

Rating: 0.4A 20V
