White Off-(On) Momentary Square Push Button Switch 12mm SPST

White Off-(On) Momentary Square Push Button Switch 12mm SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPST
Contact Rating	1A 250VAC
Current Rating	1A
Illuminated	No
Electrical Life	5000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

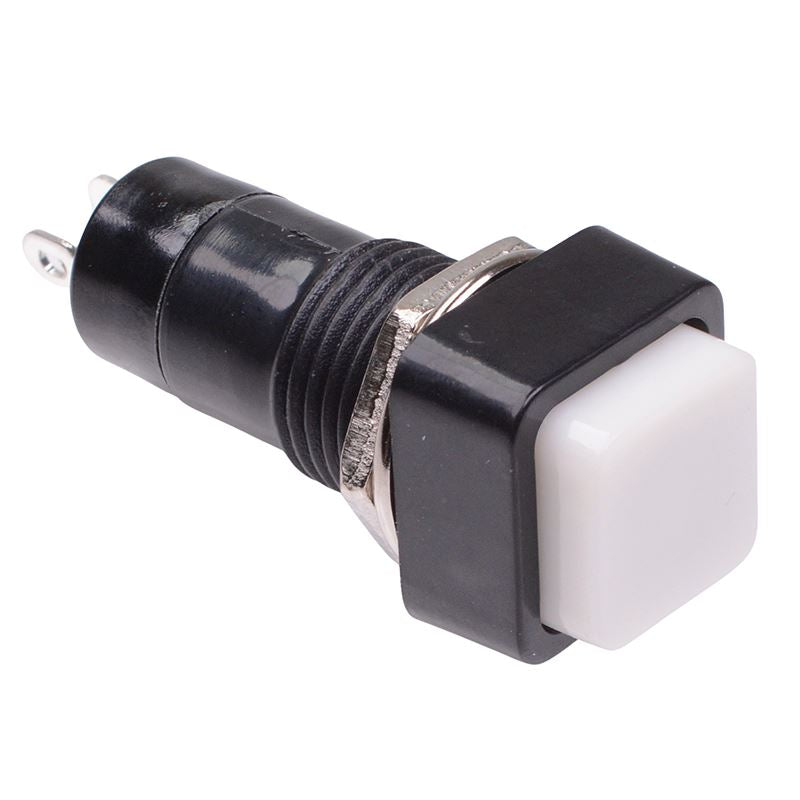

White Off-(On) Momentary Square Push Button Switch 12mm SPST

Non-latching push button switch featuring a white square actuator and SPST contacts.

Panel cut-out: 12mm

Button size: 11 x 11mm

Rating: 1A 250VAC

Solder lug terminals

Off-(On) momentary operation

Dimensions: 38.4 x 15.5mm (Height x Width)
