Yellow LED On-On 19mm Black Vandal Resistant Push Switch

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Yellow
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Yellow
Illumination Voltage	12VDC
Material	Zinc Alloy
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	19mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

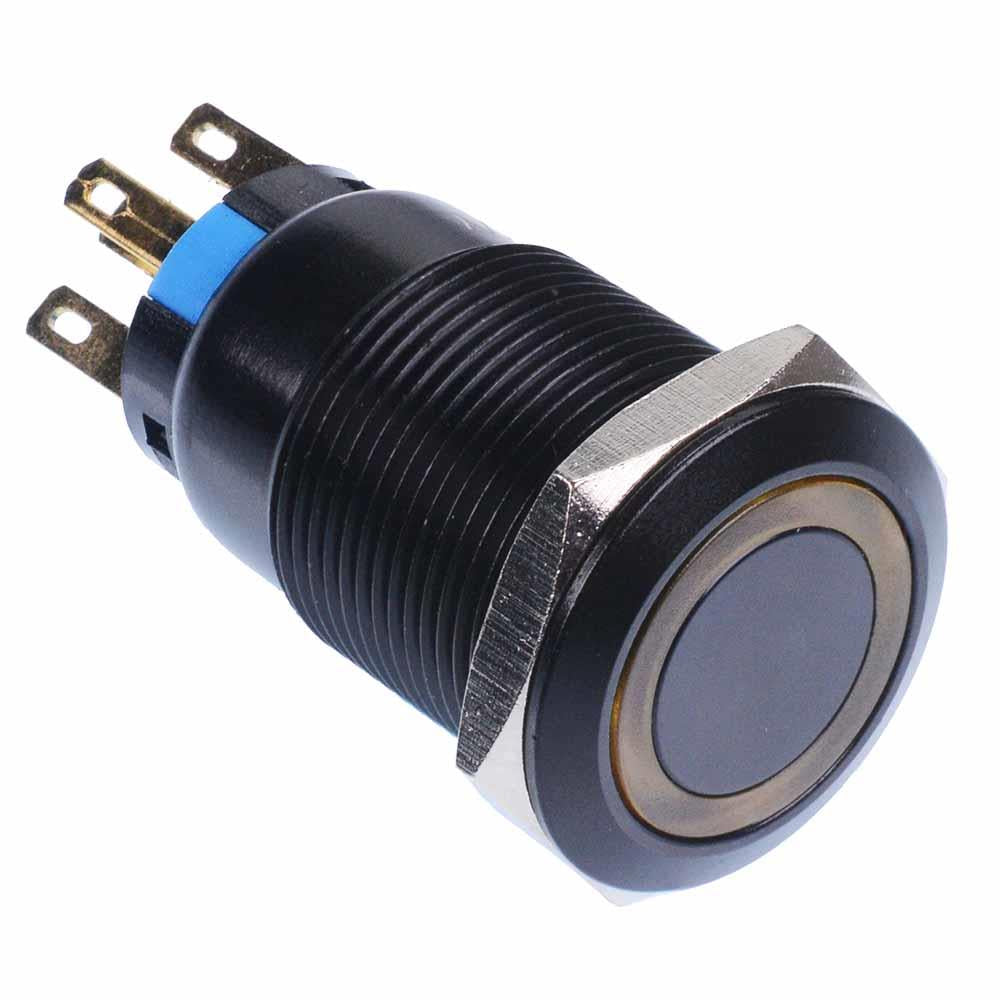

Yellow LED On-On 19mm Black Vandal Resistant Push Switch

Vandal resistant latching push button switch featuring a yellow LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.

Latching On-On action

Yellow LED

12V illumination voltage

IP65 protection rating

19mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 5A 250VAC
