On-(On) Momentary Professional 10mm Push Button Switch SPDT 104350108

On-(On) Momentary Professional 10mm Push Button Switch SPDT 104350108
On-(On) Momentary Professional 10mm Push Button Switch SPDT 104350108
0 reviews - Write a review
from
$10.26
Ex Tax: $10.26
10 or more $9.12
25 or more $8.61
50 or more $8.10
100 or more $7.69
  • Stock: In Stock
  • Model: SCJ014224
  • SKU: SCJ014224
Products Sold: 0
Product Views: 412
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPDT
Contact MaterialGold Plated Silver
Contact Rating3A 24VDC
Current Rating3A
IlluminatedNo
Electrical Life50,000 Cycles
Mounting StylePanel
Number of Poles1
Number of Positions2
Operating Temperature-40°C to +85°C
Panel Cut Out10.2mm
Panel Thickness3.5mm
Product Series10400
Switch OperationOn-(On)
Terminal TypeSolder
Voltage Rating24VDC
  • Description

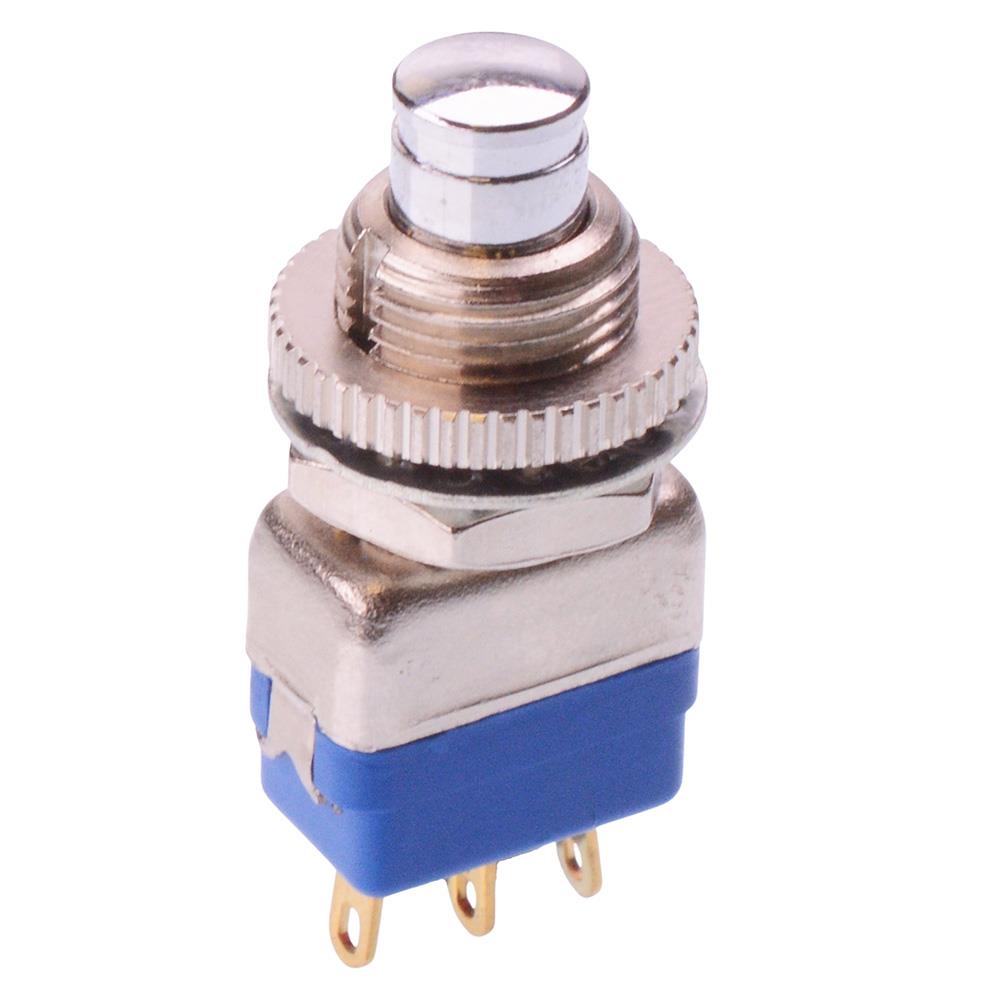

On-(On) Momentary Professional 10mm Push Button Switch SPDT 104350108

The 104350108 is a professional push button switch with a 10mm threaded bushing, manufactured by socoje. The switch features SPDT contacts and gold plated contacts suitable for demanding applications.

  • SPDT contacts
  • On-(On) momentary function
  • 10mm threaded bushing
  • Gold palted silver terminals
  • Rating: 3A 24VDC
  • Max panel thickness: 3.5mm
  • CECC approved

    • 104350108 On-(On) Momentary Professional 10mm Push Button Switch SPDT
