On-On 6.35mm Sealed Push Button Switch SPDT 8636CDBK

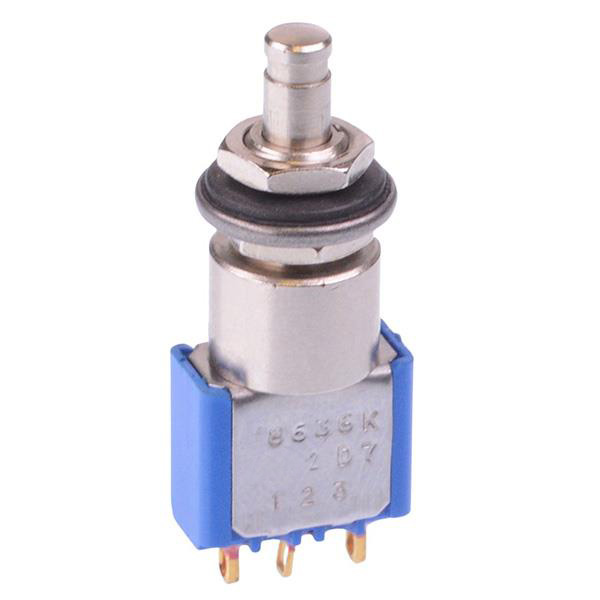

On-On 6.35mm Sealed Push Button Switch SPDT 8636CDBK 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4VA 20VAC/DC
Current Rating	0.4VA
Illuminated	No
Electrical Life	30,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Product Series	8000
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

On-On 6.35mm Sealed Push Button Switch SPDT 8636CDBK

The 8636CDBK is a push button switch featuring 6.35mm threaded bush and SPDT contacts, manufactured by socoje. The switch features solder terminals and is suitable for a wide range of panel mount applications.

SPDT contacts

On-On function

6.35mm threaded bushing

Gold plated brass terminals

Solder terminals

Panel cut-out: 6.5mm

Rating: 0.4VA 20VAC/DC

Front panel sealing
