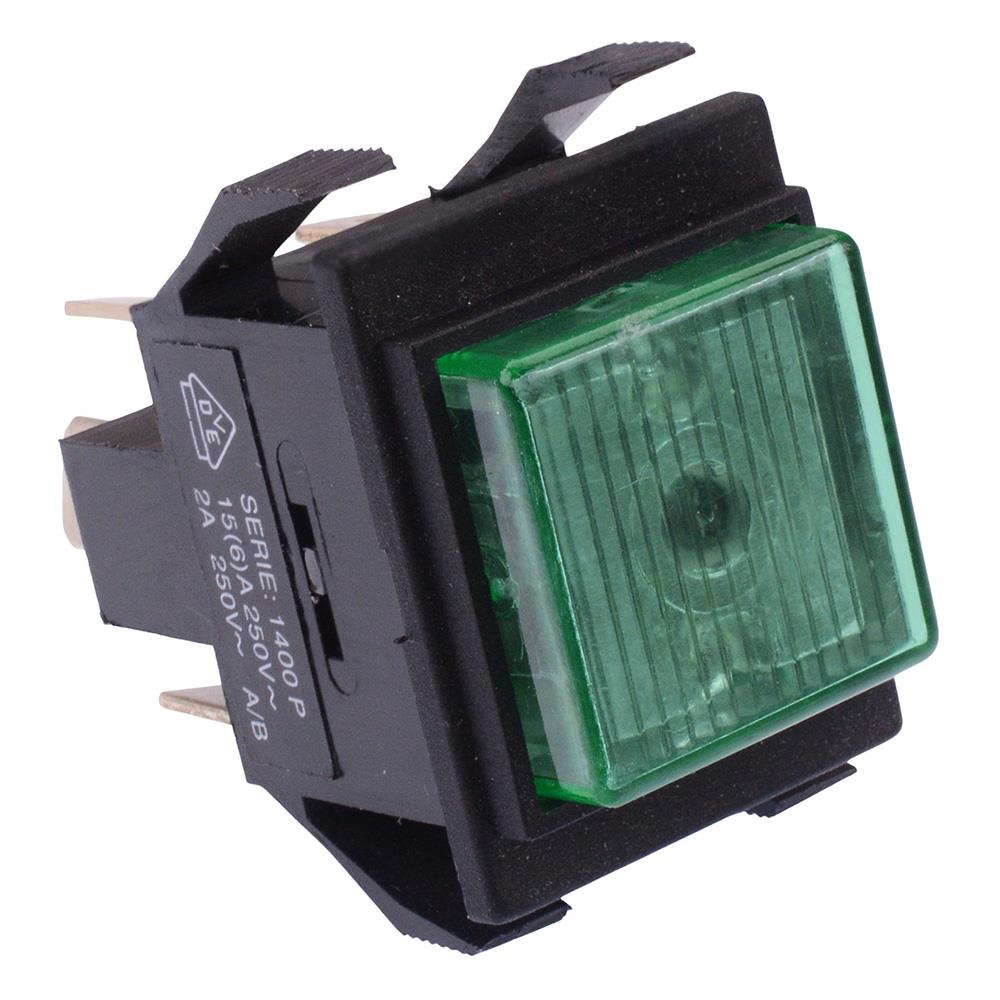

Russenberger On-Off Green illuminated Push Button Switch 230VAC DPST 1430PCFB5220VNKV

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Rating	15A 250VAC
Current Rating	15A
Illuminated	Yes
Illumination Colour	Green
Illumination Voltage	230VAC
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Panel Cut Out	23 x 22mm
Product Series	1400P
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Russenberger On-Off Green illuminated Push Button Switch 230VAC DPST 1430PCFB5220VNKV

The 1430PCFB5220VNKV is a green illuminated push button switch featuring a latching mechanism and quick connect terminals. The switch features 230VAC illumination and 15A current rating, suitable for a wide range of applications.

On-Off function

DPST contacts

6.35mm quick connect terminals

Rating: 15A 250VAC

Green 230VAC illumination

Panel cut-out: 23 x 22mm
