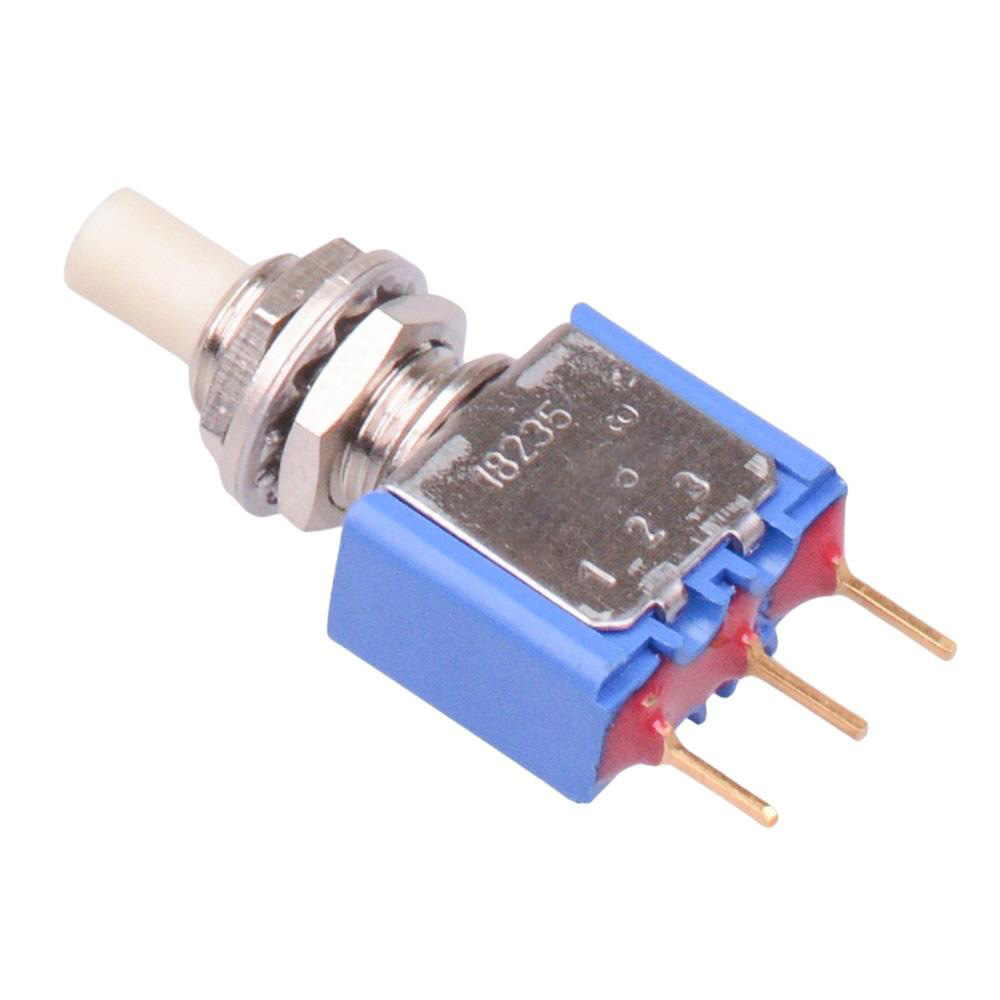

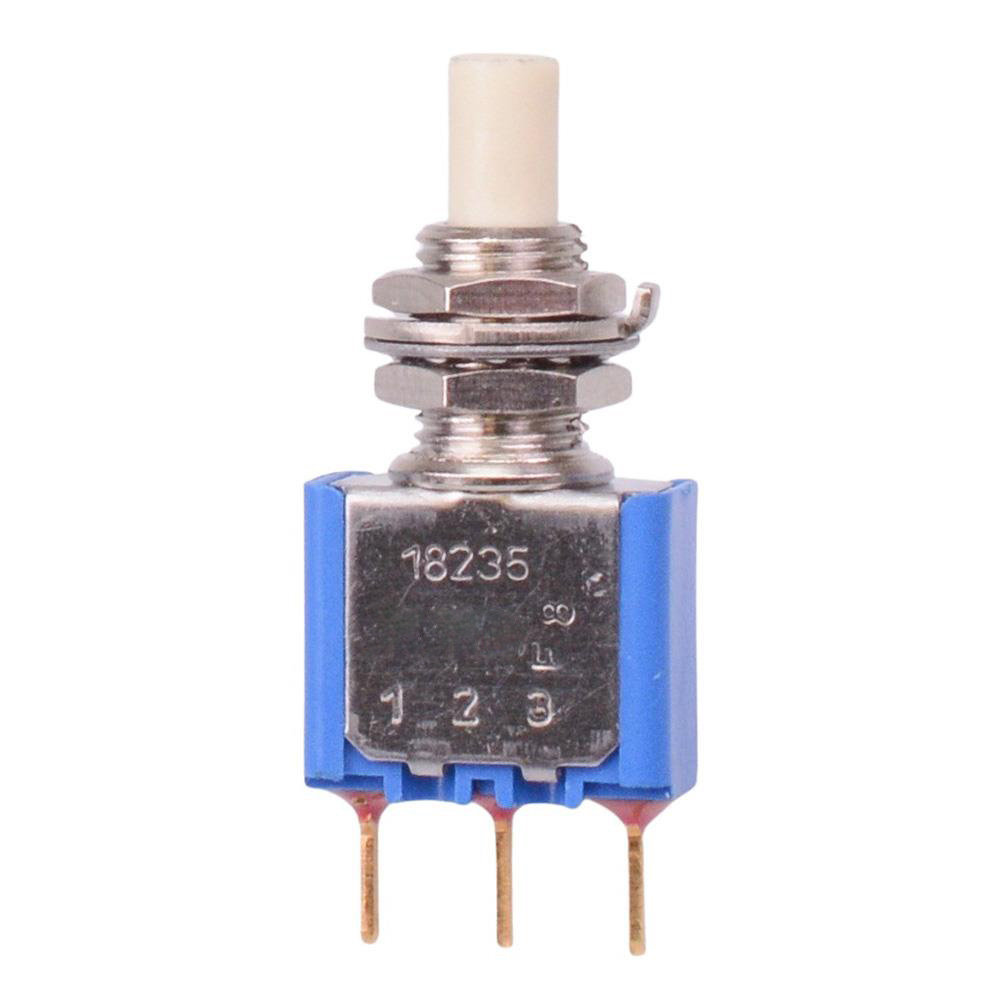

On-(On) Momentary Panel Mount Push Button Switch SPDT 0.1A 30VDC 18235CD

On-(On) Momentary Panel Mount Push Button Switch SPDT 0.1A 30VDC 18235CD 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +65°C
Panel Cut Out	6.5mm
Panel Thickness	2.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

On-(On) Momentary Panel Mount Push Button Switch SPDT 0.1A 30VDC 18235CD

The 18235CD is a snap-action momentary push button switch, featuring a positive tactile feedback when pressed and suitable for panel mount applications.

On-(On) momentary operation

SPDT contacts

Rating: 0.1A 30VDC

Panel cut-out: 6.5mm

Solder terminals

Gold plated brass contacts

2.5mm max panel thickness

Terminal pitch: 4.7mm

Dimensions: 31.45 x 13.2 x 7.0mm (height x length x width)
