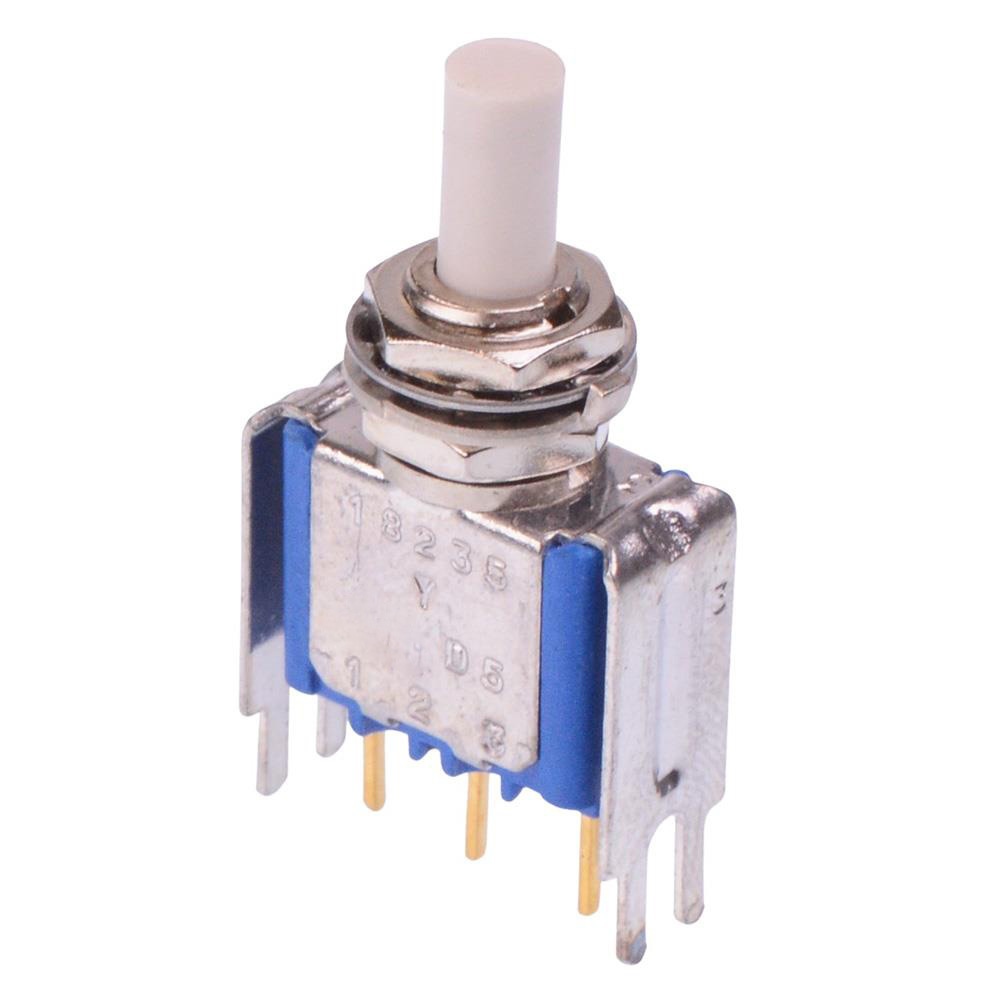

On-(On) Momentary PCB Push Button Switch SPDT 0.1A 30VDC 18235YCDX372

On-(On) Momentary PCB Push Button Switch SPDT 0.1A 30VDC 18235YCDX372 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	6.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

On-(On) Momentary PCB Push Button Switch SPDT 0.1A 30VDC 18235YCDX372

The 18235YCDX372 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for panel and PCB applications.

On-(On) momentary operation

SPDT contacts

Rating: 0.1A 30VDC

6.35mm threaded bushing

PCB terminals

6.5mm panel cut-out

Bracket mounting

Gold plated brass contacts

Short plunger (4mm diameter)

Terminal pitch: 4.7mm
