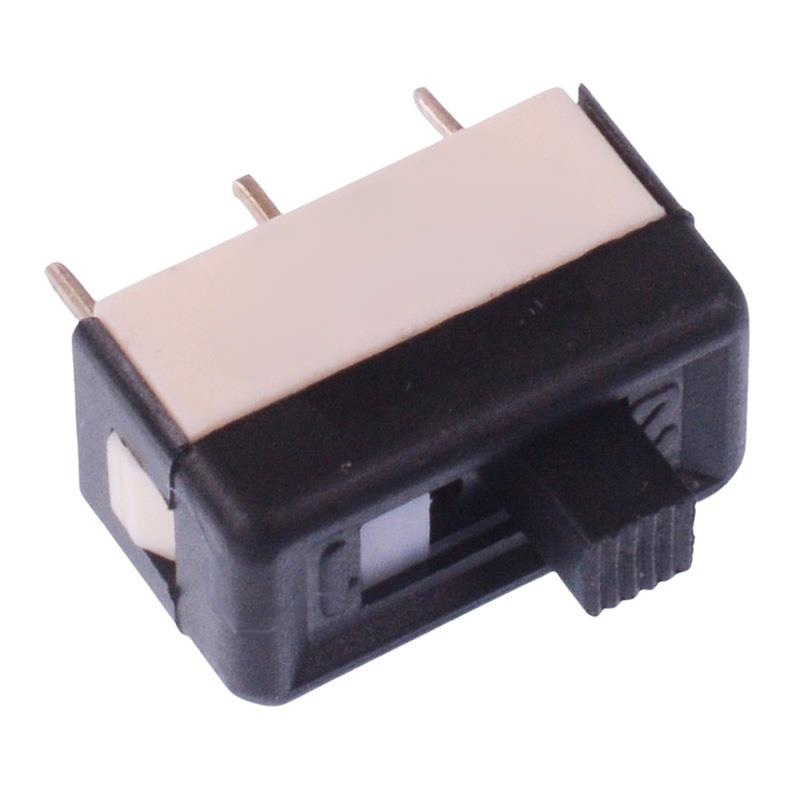

25436NAHX693UL On-On Professional PCB Slide Switch High Actuator SPDT

25436NAHX693UL On-On Professional PCB Slide Switch High Actuator SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Electrical Life	10,000 Cycles
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	5.08mm
Product Series	25000N
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	30VDC

Description

The 25436NAHX693UL is a professional grade slide switch manufactured by socoje, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

SPDT contacts

On-On operation

5.08mm terminal spacing

Silver contacts

2.8mm high actuator

Rating: 1A 30VDC
