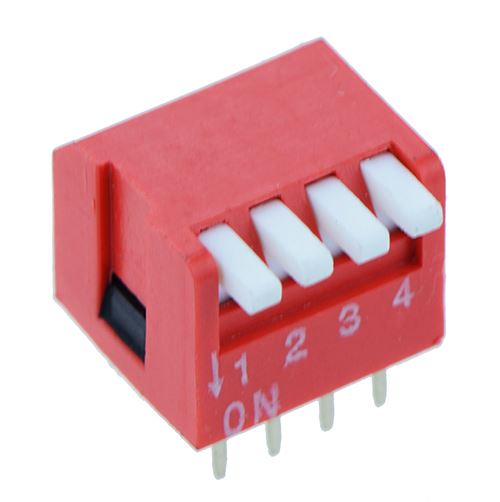

4-Way Piano DIP DIL Red PCB Switch

4-Way Piano DIP DIL Red PCB Switch 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	2,000 Operations
Material	PBT
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	4
Operating Force	9.8N max
Operating Temperature	-20°C to +70°C
Pitch	2.54mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

4-Way piano style DIL switch with 2.54mm pitch and gold plated contacts suitable for a range of applications including computers and communications equipment.

4-Ways

SPST contacts

Gold plated contacts

2.54mm pitch

On/off clearly marked on the switch

25mA maximum switching current

24VDC maximum switching voltage
