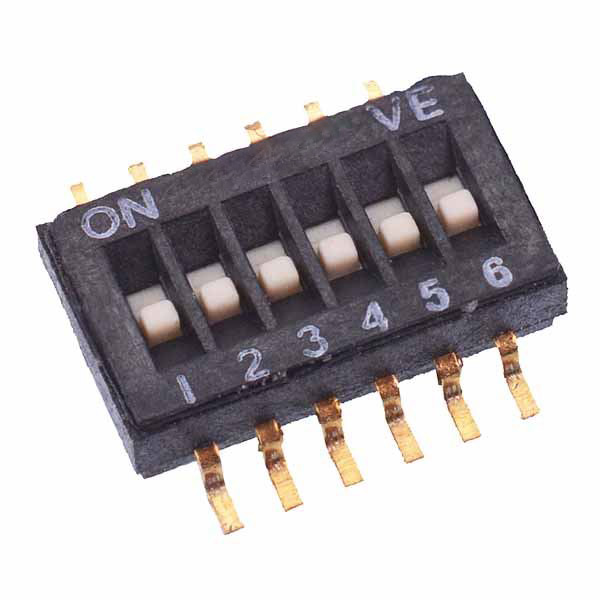

6 Way Half Pitch SMD DIL Switch 1.27mm

6 Way Half Pitch SMD DIL Switch 1.27mm 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	1,000 Cycles
Material	PPS
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	6
Operating Force	9.8N
Operating Temperature	-40°C to +85°C
Pitch	1.27mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

6 way micro miniature DIL switch featuring SPST contacts and a 1.27mm pitch, suitable for mounting to a PCB.

2 ways

1.27mm terminal pitch

Switching rating: 25mA 24VDC

Steady state rating: 100mA 50VDC

SPST contacts

Height above PCB: 2.3mm

Body width: 5.4mm
