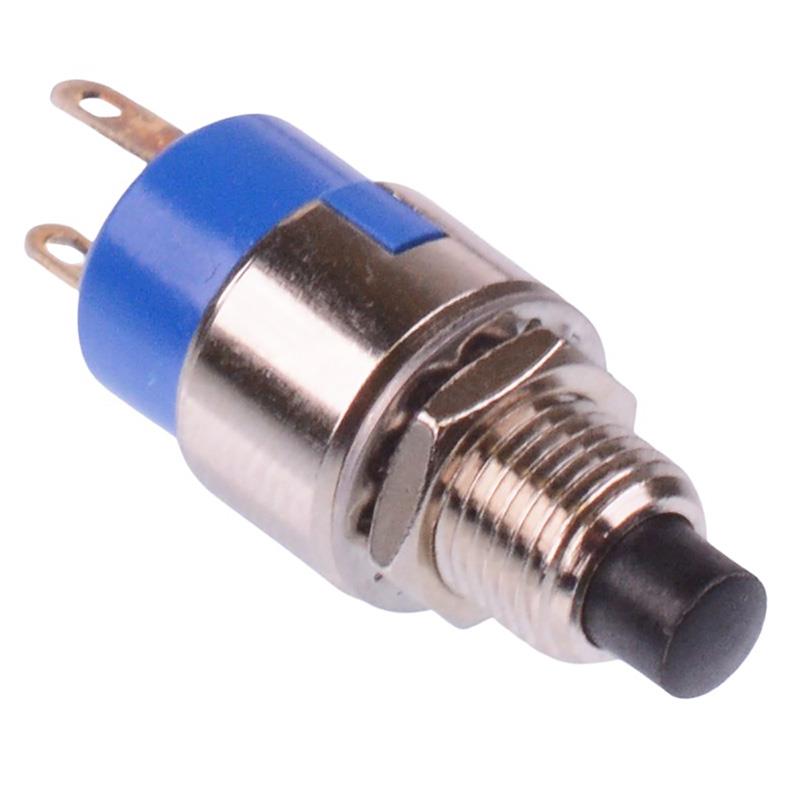

Subminiature Momentary On-(Off) Normally Closed Push Button Switch SPST 9632A3

Subminiature Momentary On-(Off) Normally Closed Push Button Switch SPST 9632A3 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	250,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +65°C
Panel Cut Out	6.5mm
Product Series	9600
Switch Operation	On-(Off)
Terminal Type	Solder
Voltage Rating	30VDC

Description

Subminiature Momentary On-(Off) Normally Closed Push Button Switch SPST 9632A3

The 9632A3 is a subminiature momentary push button switch manufactured by socoje, with SPST contacts and 6.35mm bushing. The switch features solder terminals and is suitable for low power panel mount applications.

SPST-NC contacts

6.35mm threaded bushing

Silver terminals

Rating: 1A 30VDC

Panel cut-out: 6.5mm
