Brief
Description
The beveling machine is easy and safe to use and it is suitable for steel, cast iron, hard plastic, non-ferrous metal and other materials which can be used in beveling, deburring and chamfering for metal pipes and plates before welding. Applicable materials include steel, cast iron, hard plastic, non-ferrous metals, etc.
Features
- Chamfering width and chamfering angle are adjustable. Cutting piece is standard piece, easy to replace. Milling cutter disk is roller type, which improves efficiency and saves mold making time.
- Beveling chamfering machine has compact structure, portable design, hand-held operation, easy to move. Small vibration, stable operation, precise and safe.
Specification
| Model | SCJ009832 |
| Max. Cutting Edge Width | 15mm (adjustable) |
| Chamfering Angle | 30°~60° |
| Rotation Speed | 2870rpm |
| Rated Power | 1.1kw |
| Voltage | 380V |
| Warranty | 1 year |
| Weight | 18 kg |
| Supplementary Tools | φ66mm butterfly milling cutter*2, each has 6 pieces of high-speed carbon steel embedded milling cutter blades |

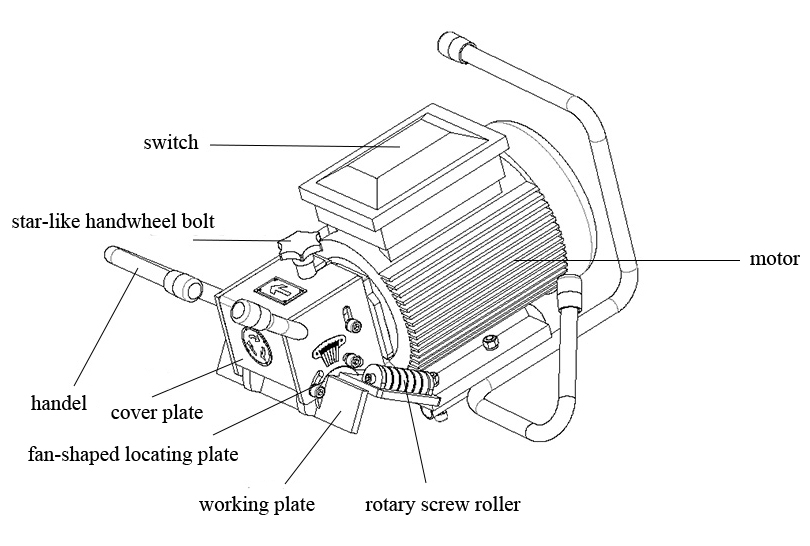

Structure Diagram
Applications
The deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.
Tips: What is a beveling machine used for?
The bevelling of plates or tubes is most commonly used to prepare the ends for welding. It can also be used for deburring the cut ends for safety and aesthetic reasons.
