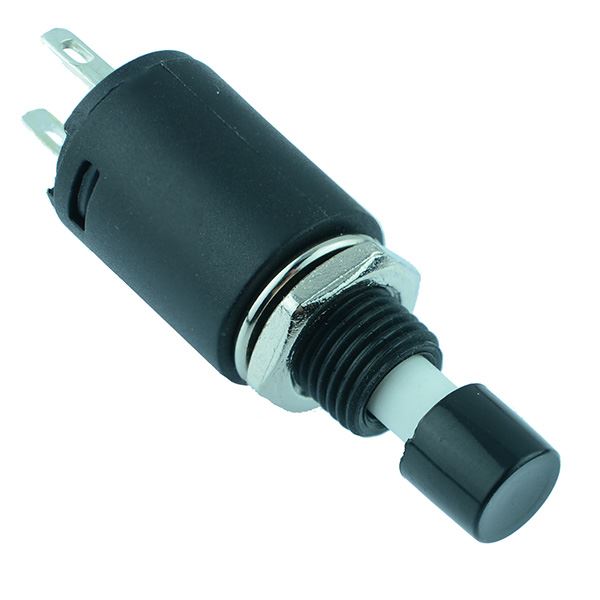

Black On-Off Latching Small Button Push Switch SPST R13-512B1

Black On-Off Latching Small Button Push Switch SPST R13-512B1 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	1.5A 250VAC
Current Rating	1.5A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Panel Cut Out	7mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

Black On-Off Latching Small Button Push Switch SPST R13-512B1

Panel mounting SPST latching push button switch with small black actuator.

On-off operation

SPST contacts

Silver plated brass contacts

7mm panel cut-out

4mm maximum panel thickness

6mm diameter button

Dimensions: 37.5 x 11.5mm (Length x Diameter

socoje R13-512 series
