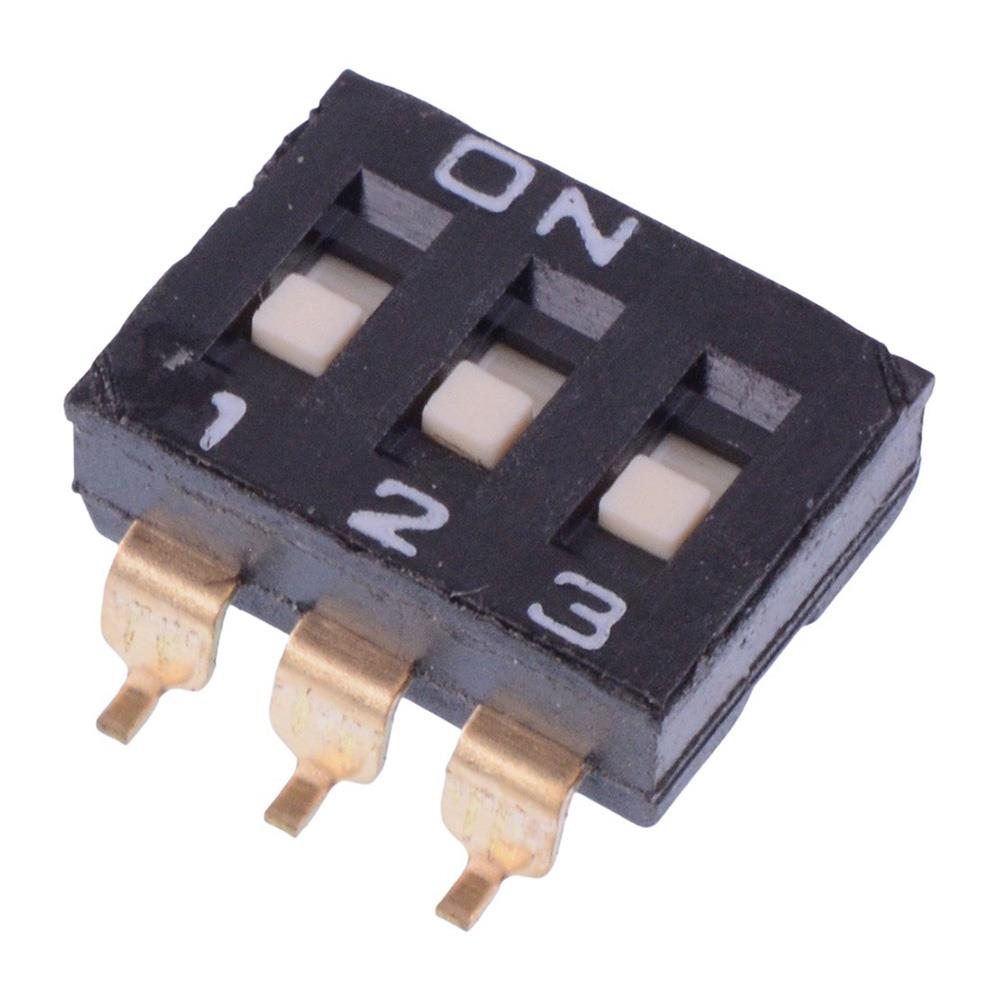

DMR03TV/TR 3-Way Surface Mount 2.54mm DIP Switch SPST

DMR03TV/TR 3-Way Surface Mount 2.54mm DIP Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	UL94-V0
Mounting Style	Surface Mount
Number of Positions	2
Number of Ways	3
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Product Series	DM
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The DMR03TV/TR is a 3 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

Recessed actuator

3 ways

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Gold plated terminals

2.54mm pitch

Tape seal

Tape packaging
