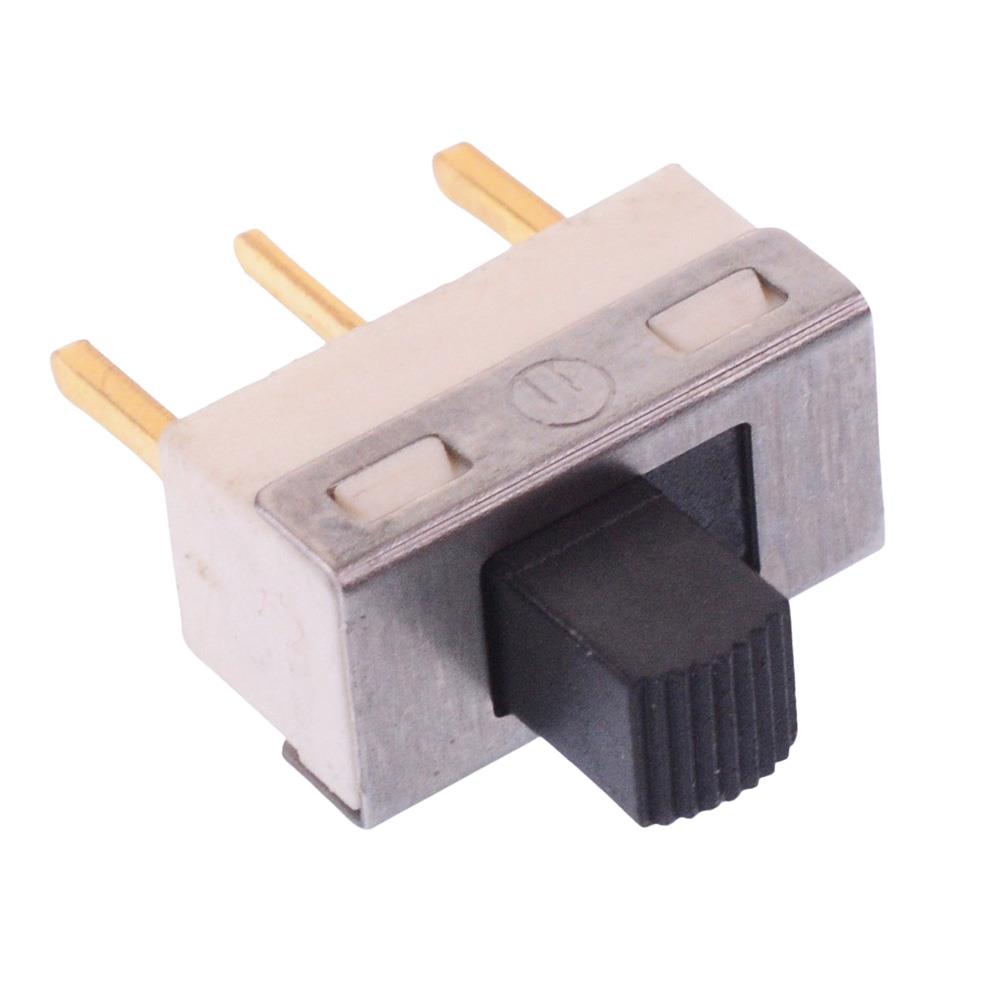

GH36P000000 On-On PCB Slide Switch SPDT

GH36P000000 On-On PCB Slide Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4A 20VAC/DC
Current Rating	0.4A
Electrical Life	60,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 85°C
Pitch	4.7mm
Product Series	G
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	20VAC/DC

Description

The GH36P000000 is a telecom grade slide switch featuring gold plated PCB terminals and SPDT contacts. The switch features a 5.1mm height actuator and is suitable for professional applications.

On-On function

Contacts: SPDT

Rating: 0.4VA 20VAC/DC

5.1mm height actuator

Gold plated brass terminals

PCB terminals

Terminal pitch: 4.7mm

Dimensions: 12.7 x 6.65mm (length x width)
