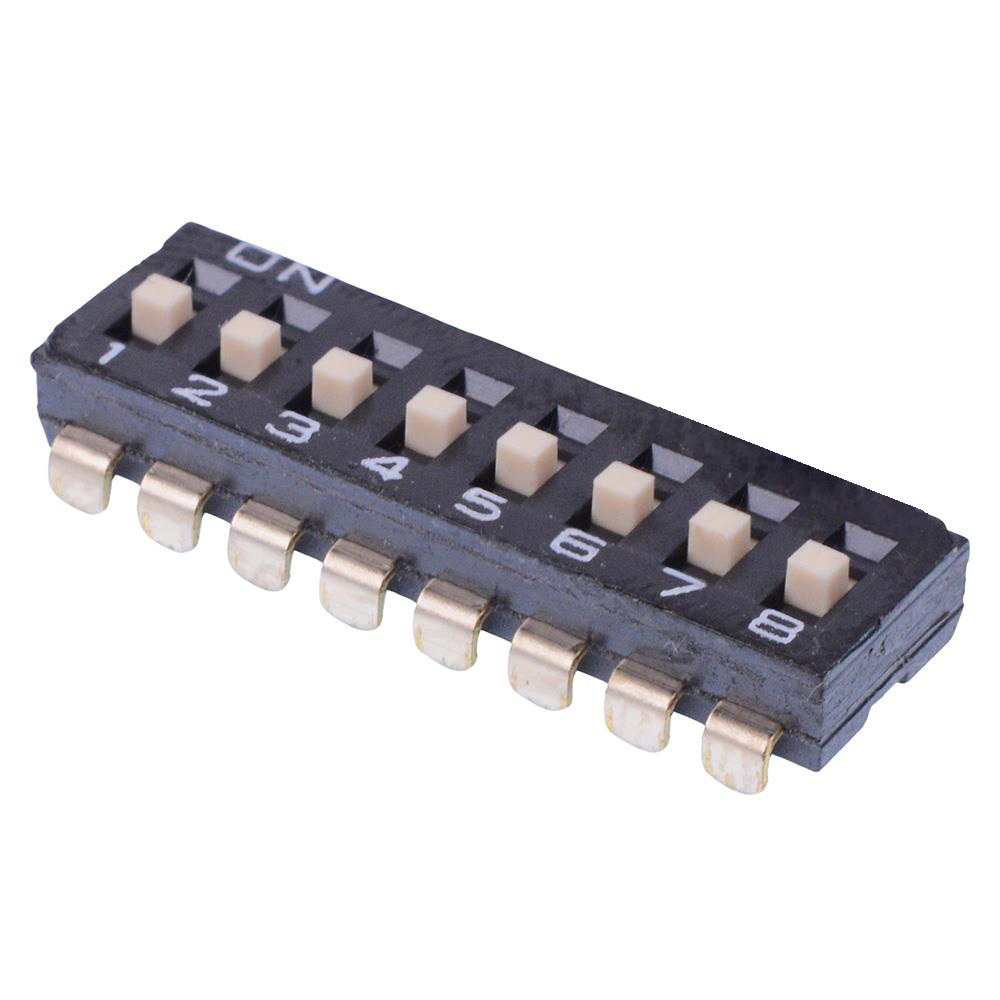

IKD0805101 8-Way 2.54mm Surface Mount PCB DIP Switch SPST

IKD0805101 8-Way 2.54mm Surface Mount PCB DIP Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	UL94-V0
Mounting Style	Surface Mount
Number of Positions	2
Number of Ways	8
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Product Series	IKD
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The IKD0805101 is a 8 way DIP switch featuring SPST contacts and gold plated terminals. The switch features 3mm height from the PCB and 25mA 24VDC switch rating, suitable for surface mount PCB applications.

8 ways

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Gold plated J bend terminals

2.54mm pitch

Tape seal
