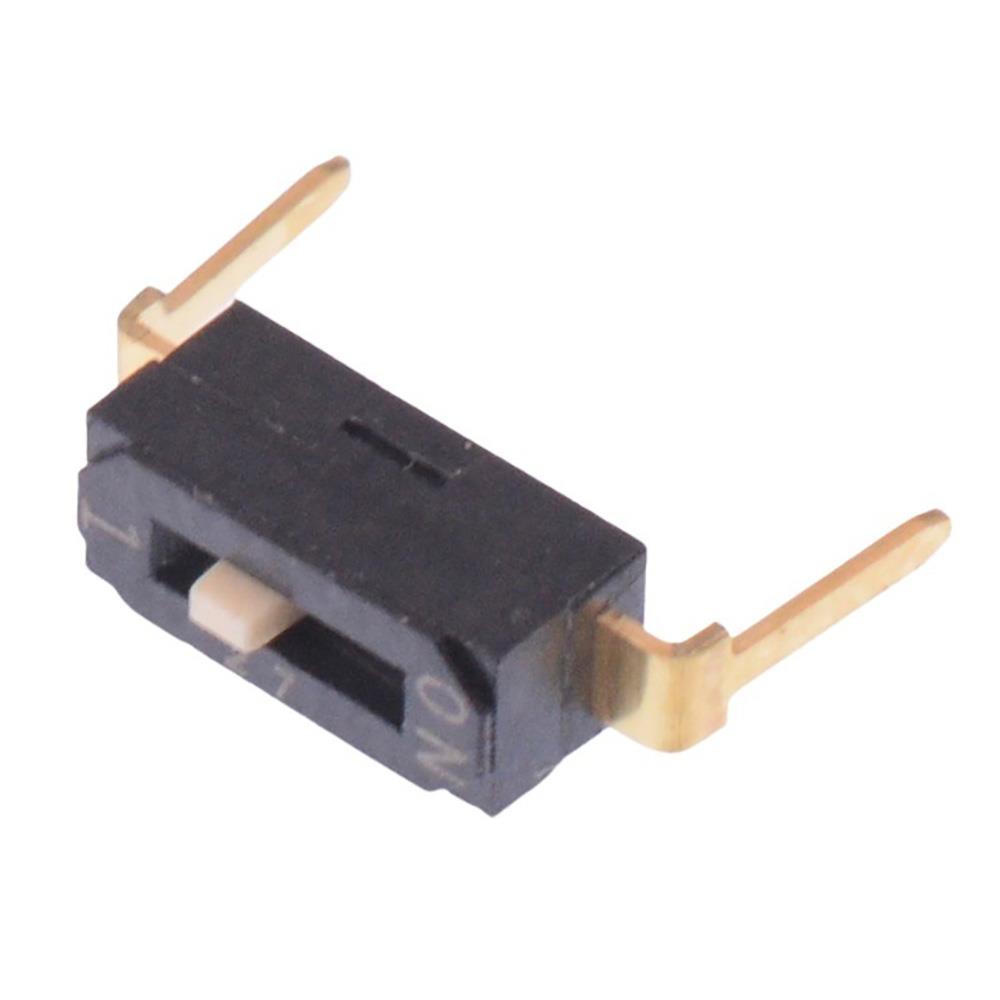

IKE0100101 1-Way 2.54mm Through Hole PCB DIP Switch SPST

IKE0100101 1-Way 2.54mm Through Hole PCB DIP Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	UL94-V0
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	1
Operating Temperature	-20°C to +85°C
Pitch	2.54mm
Product Series	IKE
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The IKE0100101 is a 1 way DIP switch featuring SPST contacts and gold plated terminals. The switch features 3mm height from the PCB and 25mA 24VDC switch rating, suitable for surface mount PCB applications.

1 way

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Through hole terminals

2.54mm pitch

Raised actuator

End stackable
