Orange Square Momentary NO/NC 12mm Push Button Switch IP67 IPC5SAD9
from
$21.12
Ex Tax: $21.12
10 or more $18.80
25 or more $17.74
50 or more $16.69
100 or more $15.85
- Stock: In Stock
- Model: SCJ014276
- SKU: SCJ014276
Products Sold: 0
Product Views: 471
Ask a Question About This Product
- Description

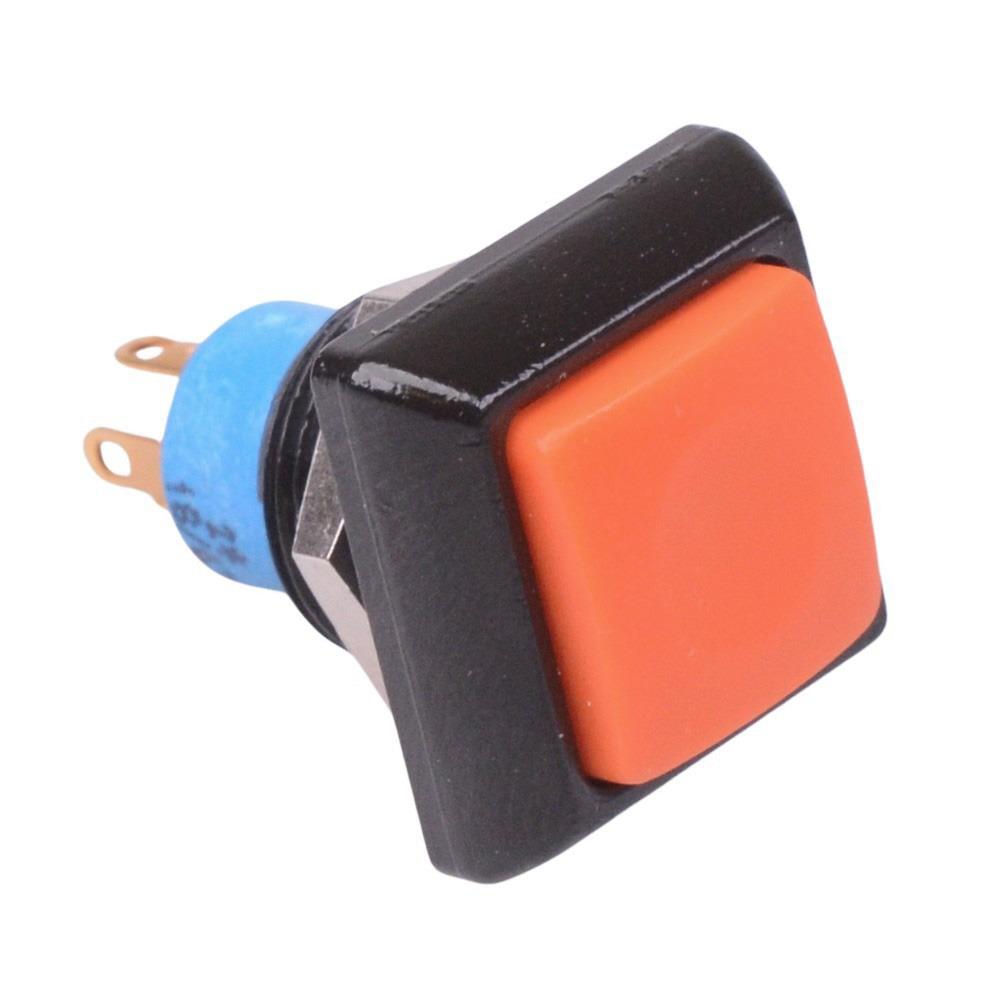

Orange Square Momentary NO/NC 12mm Push Button Switch IP67 IPC5SAD9
The IPC5SAD9 is a orange momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and NO/NC contacts, suitable for applications in harsh environments including automotive.
Momentary NO/NC operation Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
