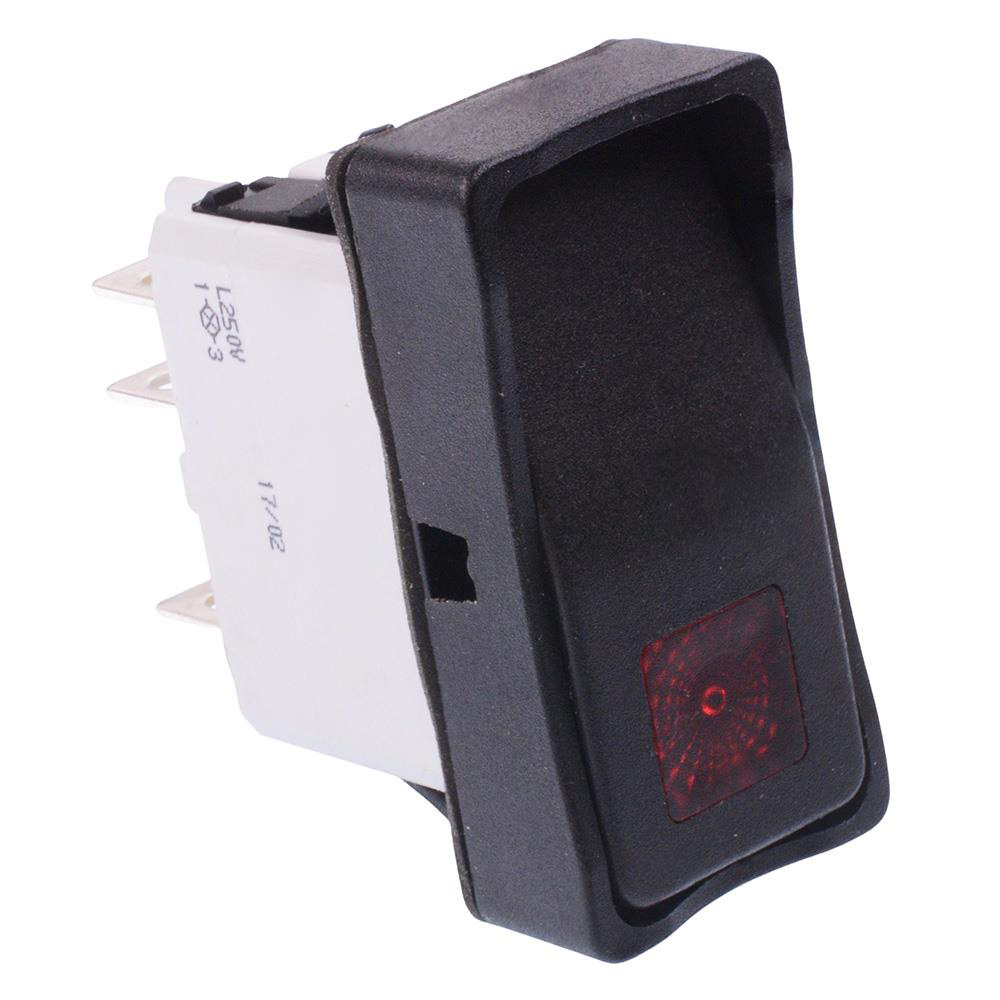

KG462A2XNB26X6 On-On Red 250V illuminated Power Rocker Switch DPDT IP65

KG462A2XNB26X6 On-On Red 250V illuminated Power Rocker Switch DPDT IP65 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	15A 12VDC
Current Rating	15A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Red
Illumination Voltage	250VAC
Material	Thermoplastic
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP65
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8-4.6mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KG462A2XNB26X6 is a power rower switch manufactured by socoje, featuring DPDT contacts and red illumination. The switch is sealed to IP65 and is suitable for industrial applications.

On-On operation

DPDT contacts

Red 250VAC illumination

IP65 protection rating

Protection bezel

6.35mm quick connect terminals

Rating: 15A 12VDC, 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
