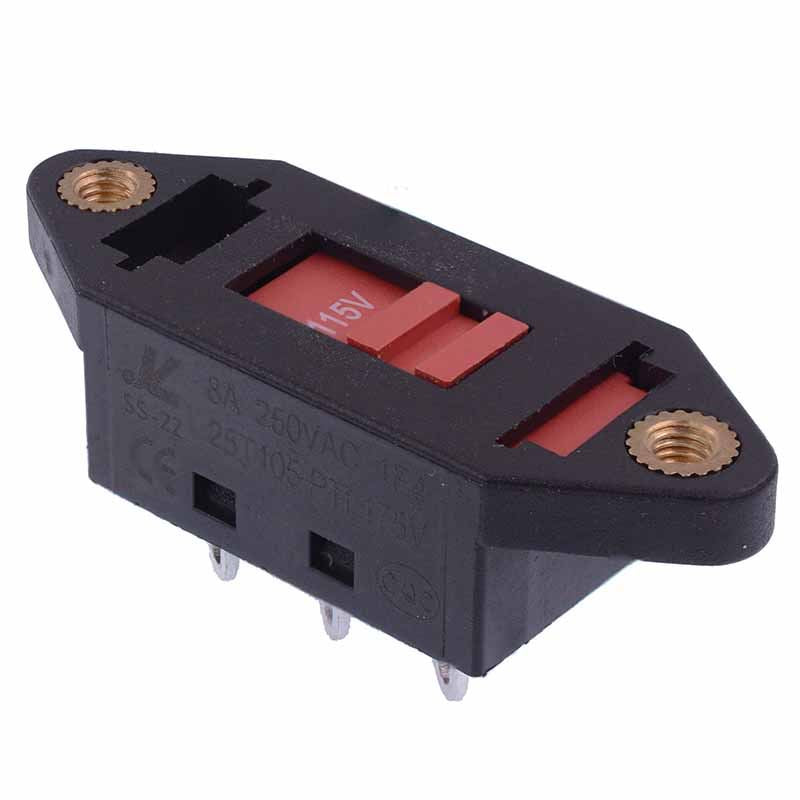

On-On Voltage Selector Slide Switch DPDT 6A

On-On Voltage Selector Slide Switch DPDT 6A 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	6A 250VAC, 12A 125VAC
Current Rating	12A
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to +85°C
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On changeover voltage selector switch 115V and 230V markings. The switch features a flush actuator preventing accidental operation and is suitable for mounting to a panel.

On-On action

DPDT contacts

Solder terminals

Rating: 6A 250VAC, 12A 125VAC

M3 mounting holes

Mounting hole pitch: 34.2mm

Dimensions: 41.5 x 14.2 x 18mm (Length x Width x Height)
