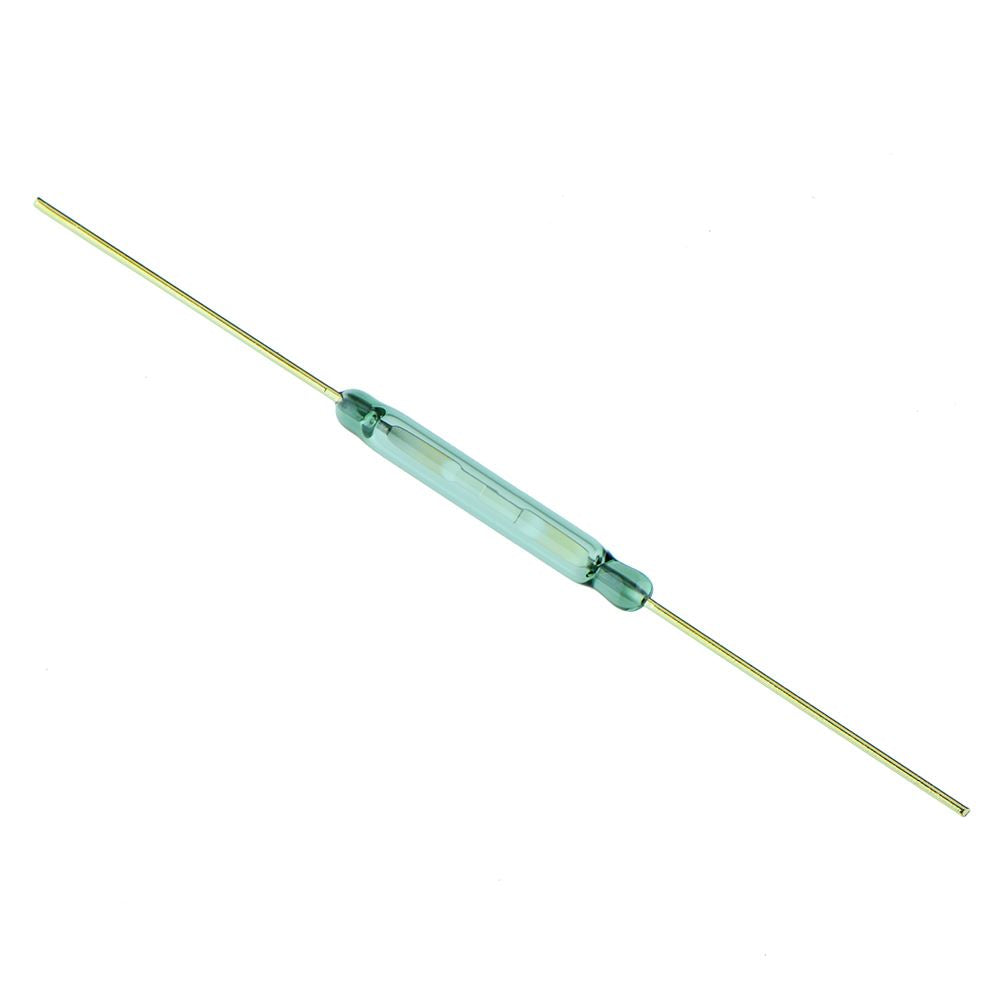

SPST-NO Reed Switch 1A 230V - 2502-2722-020

SPST-NO Reed Switch 1A 230V - 2502-2722-020 1

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	2.6mm
Carry Current	2A
Length	19mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	12VA
Maximum Switching Current	1A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	230VAC/DC
Material	Rhodium
Pull In Sensitivity	30-50AT
Release Time	0.1ms
Operating Temperature	-40°C to +125°C

Description

2502-2722-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 230V AC/DC

Maximum switching current: 1A

Maximum switching power: 12VA

Pull-in sensitivity: 30-50AT
