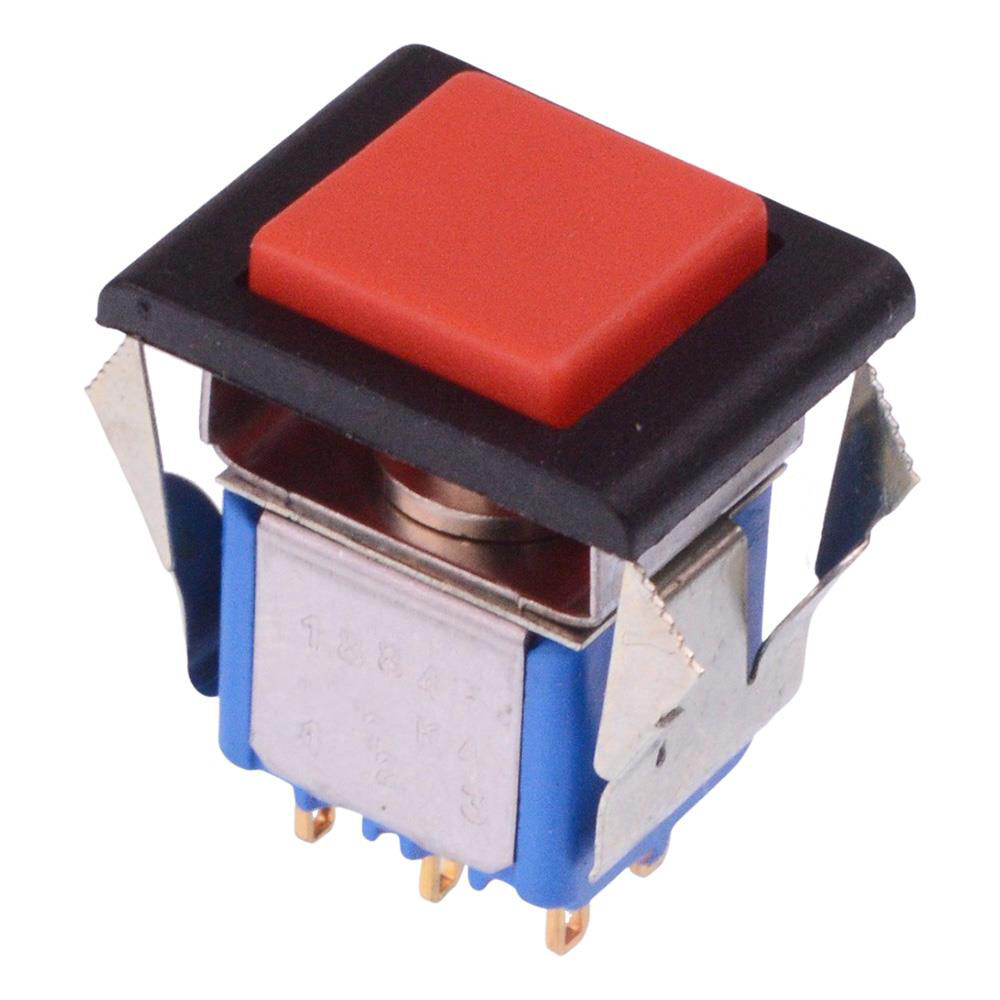

Red Button On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC 18845CD

Red Button On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC 18845CD 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	DPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	15 x 12.5mm
Panel Thickness	2.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

Red Button On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC 18845CD

The 18845CD is a snap-action momentary push button switch with a red button, featuring a positive tactile feedback when pressed and suitable for panel mount applications.

On-(On) momentary operation

DPDT contacts

Rating: 0.1A 30VDC

Panel cut-out: 15 x 12.5mm

Solder terminals

Gold plated brass contacts

2.5mm max panel thickness

Red button

Terminal pitch: 4.7mm
