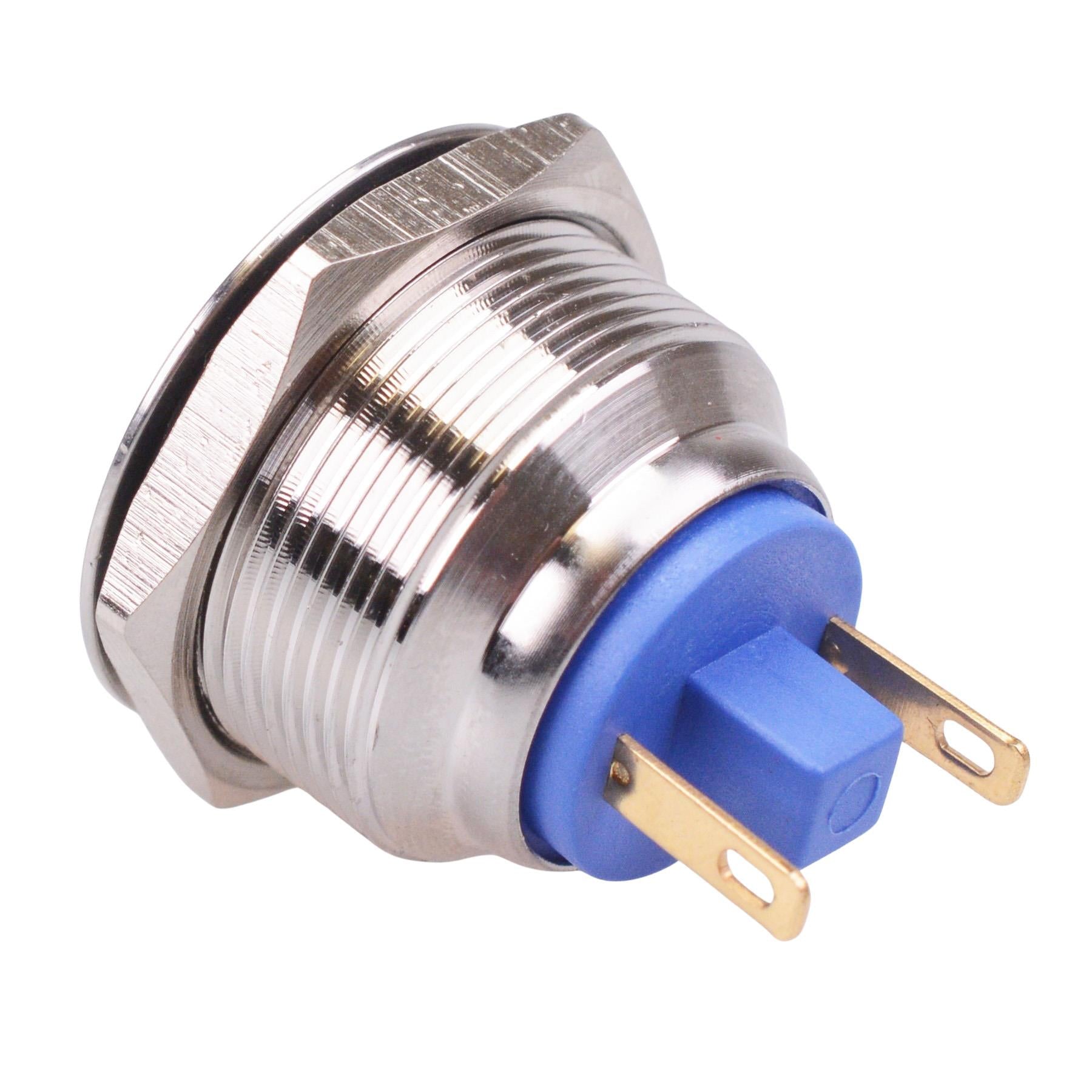

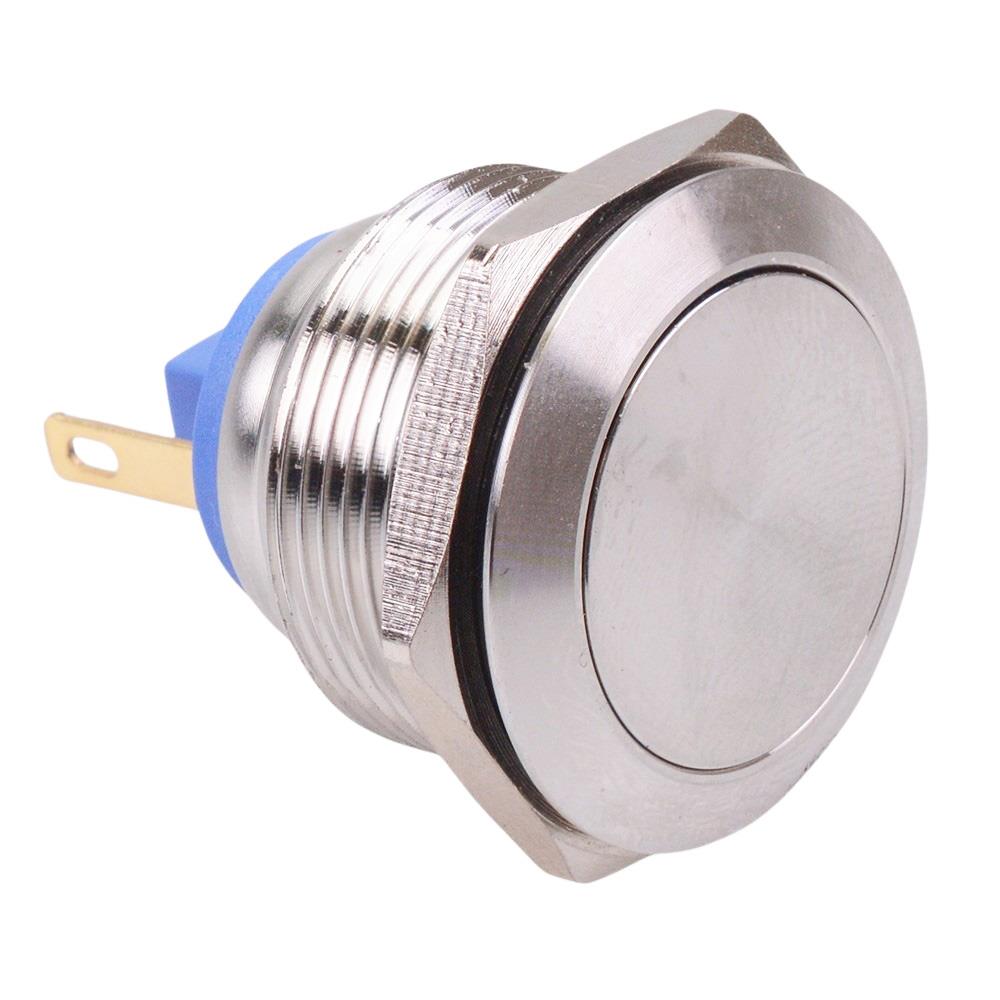

Off-(On) Momentary 22mm Stainless Steel Vandal Push Button Switch 2A SPST

Off-(On) Momentary 22mm Stainless Steel Vandal Push Button Switch 2A SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	2A 48VDC
Current Rating	2A
Illuminated	No
Electrical Life	200,000 Cycles
Illumination Colour	Non Illuminated
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	22mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

22mm vandal resistant push button switch offering excellent durability housed in an attractive stainless steel body. The switch features NO contacts and a IP65 sealed construction, suitable for a wide range of applications.

Momentary action

SPST contacts

Panel cut-out: 22mm

Panel thickness: 8mm

Body material: stainless steel

2.8x0.5mm terminals

Rating: 2A 48VDC

1,000,000 cycles mechanical life
