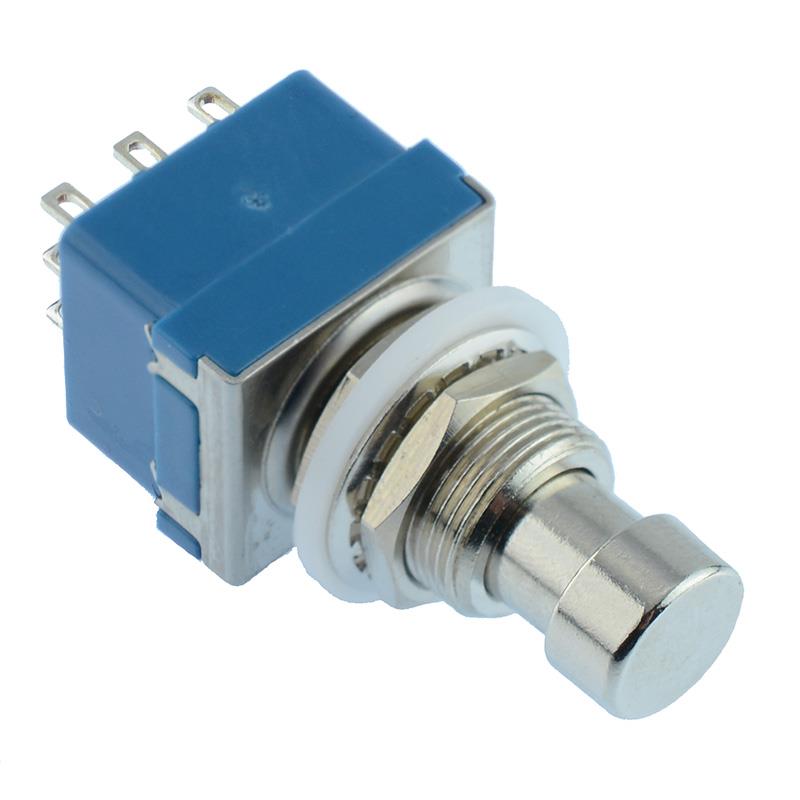

On-(On) Momentary Foot Switch 3PDT 12mm

On-(On) Momentary Foot Switch 3PDT 12mm 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	3PDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	6mm
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-(On) Momentary Foot Switch 3PDT 12mm

3PDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.

3PDT contacts

Momentary On-(On) action

Solder terminals

Suitable for panel mounting and secured by nut

Panel cut-out: 12mm

Maximum Panel Thickness: 4mm

Dimensions: 42.1 x 17 x 19.6mm (Height x Length x Width)

Download
