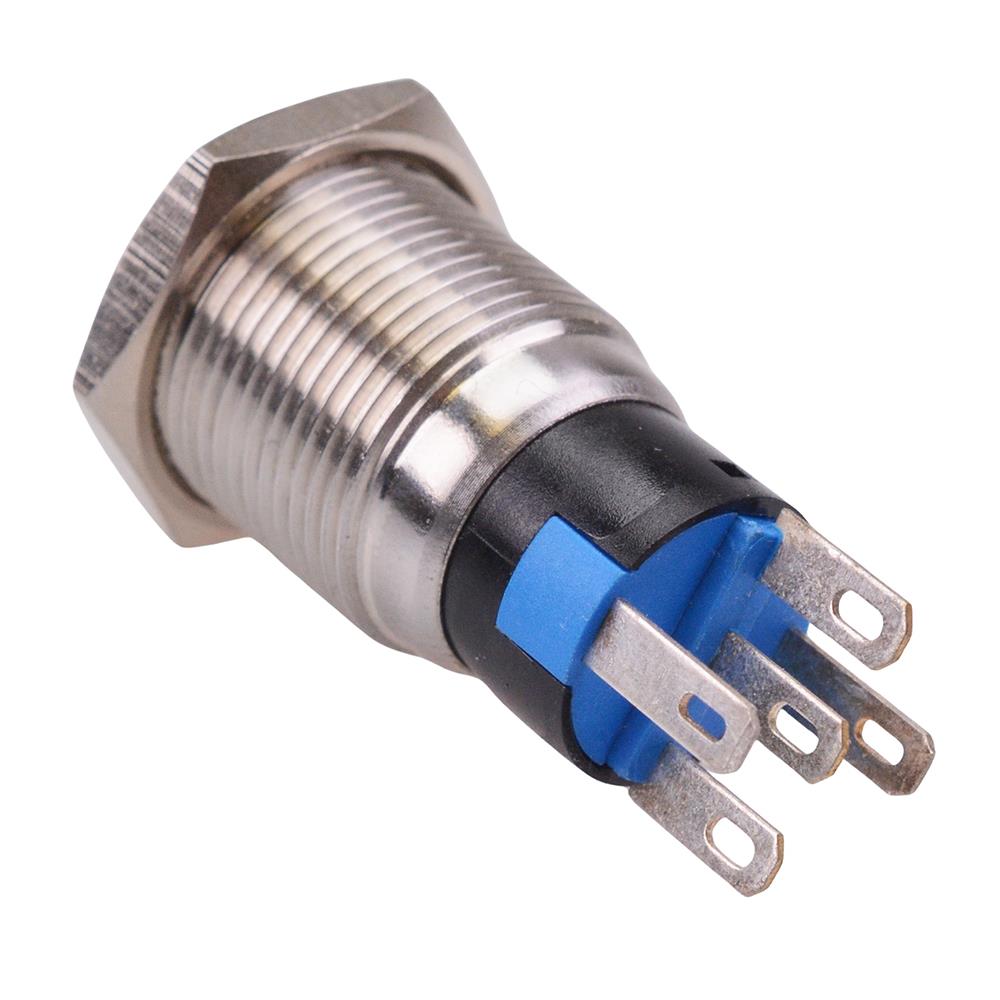

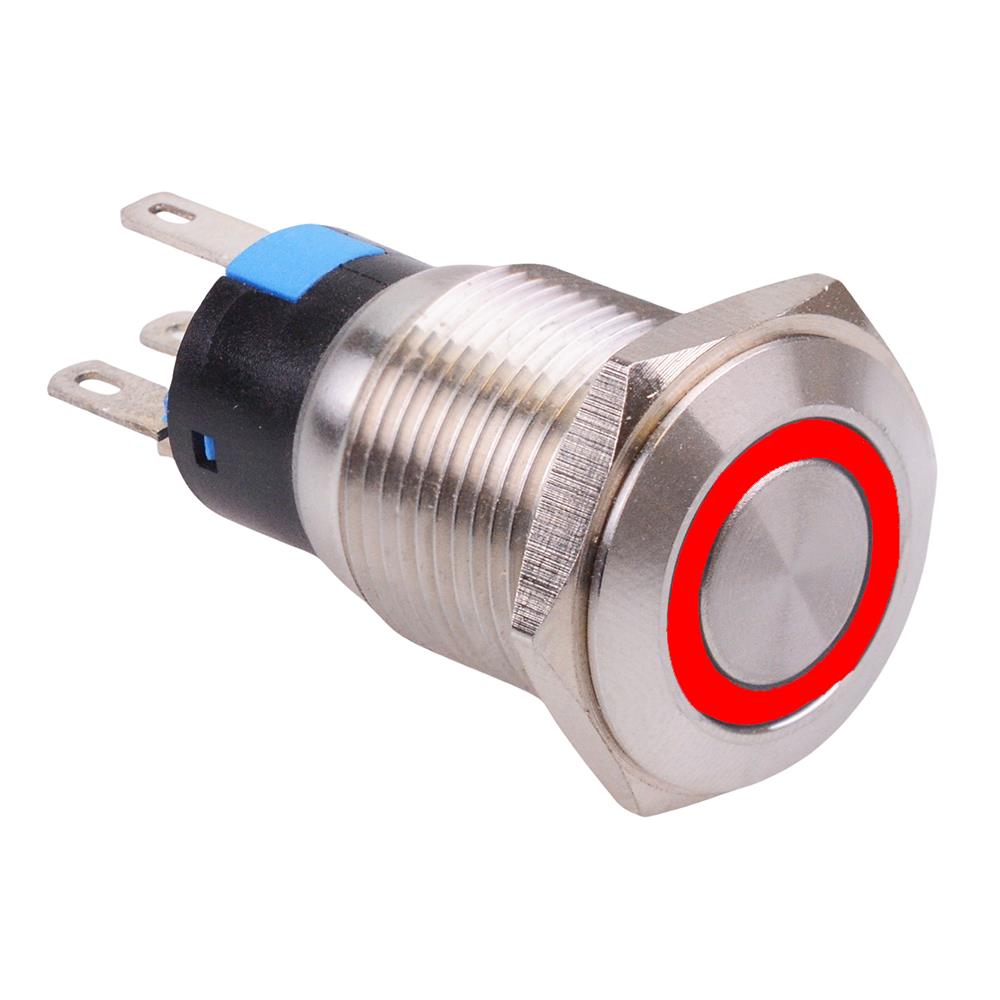

Red LED 16mm Momentary Vandal Push Button Switch 3A SPDT

Red LED 16mm Momentary Vandal Push Button Switch 3A SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000+ Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	16mm
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Red LED momentary vandal resistant switch featuring a stainless steel, suitable for a 16mm panel cut-out. The switch features a flush actuator and is suitable for 12V applications where an attractive tamper proof switch is required.

Momentary action

SPDT NO/NC contacts

Red LED 12V illumination

Stainless steel construction

Panel cut-out: 16mm

Panel thickness: 10mm max

Rating: 3A 250VAC

2.8x0.8mm terminals

Download
