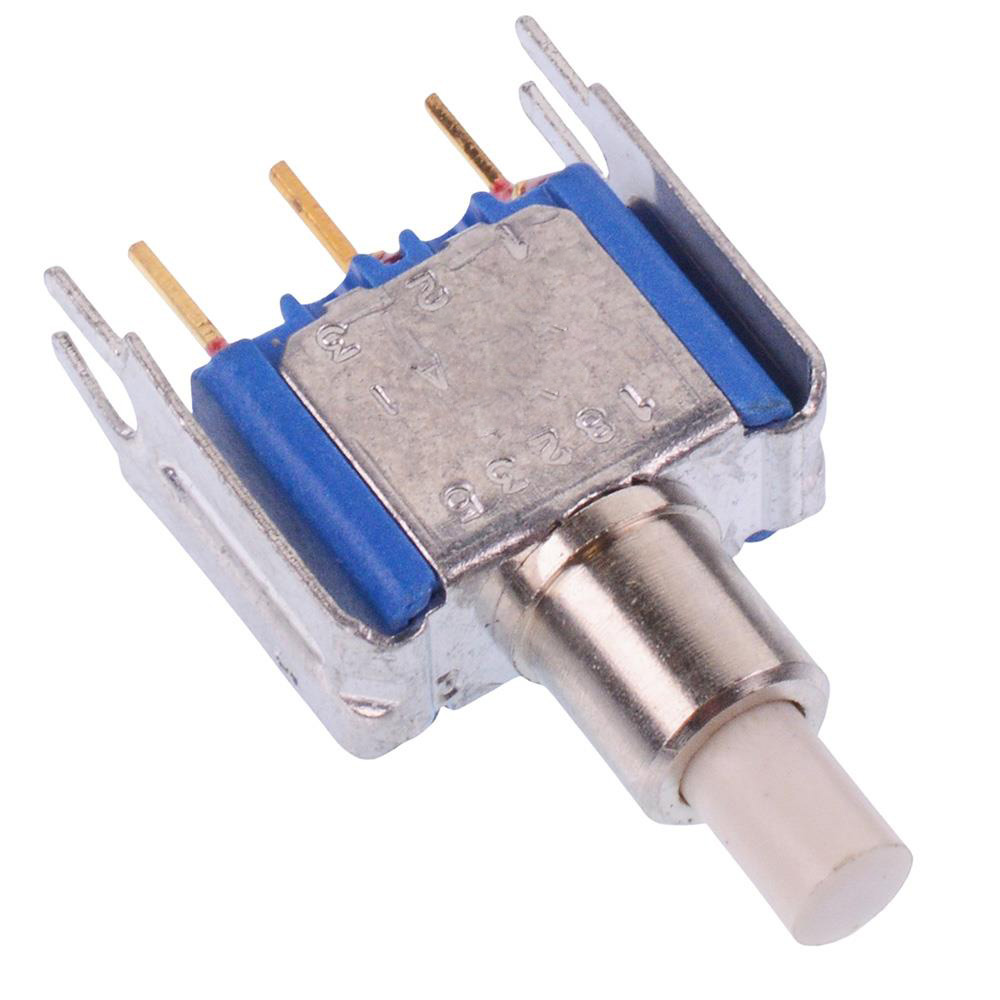

18235YAD3 On-(On) Momentary PCB Push Button Switch SPDT 1A 30VDC

18235YAD3 On-(On) Momentary PCB Push Button Switch SPDT 1A 30VDC 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Material	Gold Plated Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 65°C
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

The 18235YAD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.

On-(On) momentary operation

SPDT contacts

Rating: 1A 30VDC

Plain bushing

PCB terminals

Bracket mounting

Gold plated silver contacts

Short plunger (4mm diameter)

Terminal pitch: 4.7mm
