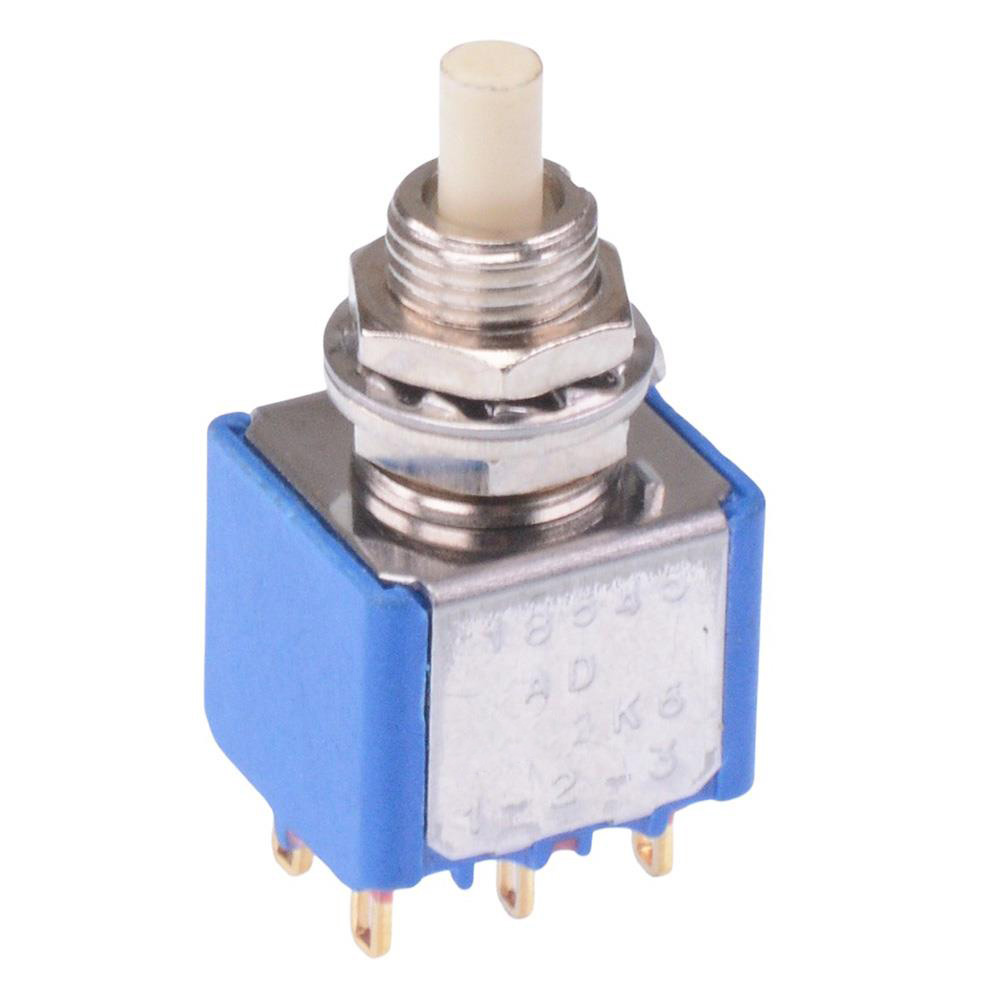

On-(On) Momentary Push Button Switch DPDT 1A 30VDC 18545AD5

On-(On) Momentary Push Button Switch DPDT 1A 30VDC 18545AD5 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Material	Gold Plated Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	6.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

On-(On) Momentary Push Button Switch DPDT 1A 30VDC 18545AD5

The 18545AD5 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for panel mount applications.

On-(On) momentary operation

DPDT contacts

Rating: 1A 30VDC

6.35mm threaded bushing

Solder terminals

6.5mm panel cut-out

Gold plated silver contacts

Plunger: 3.1 x 6.3mm (diameter x height)

Terminal pitch: 4.7mm
