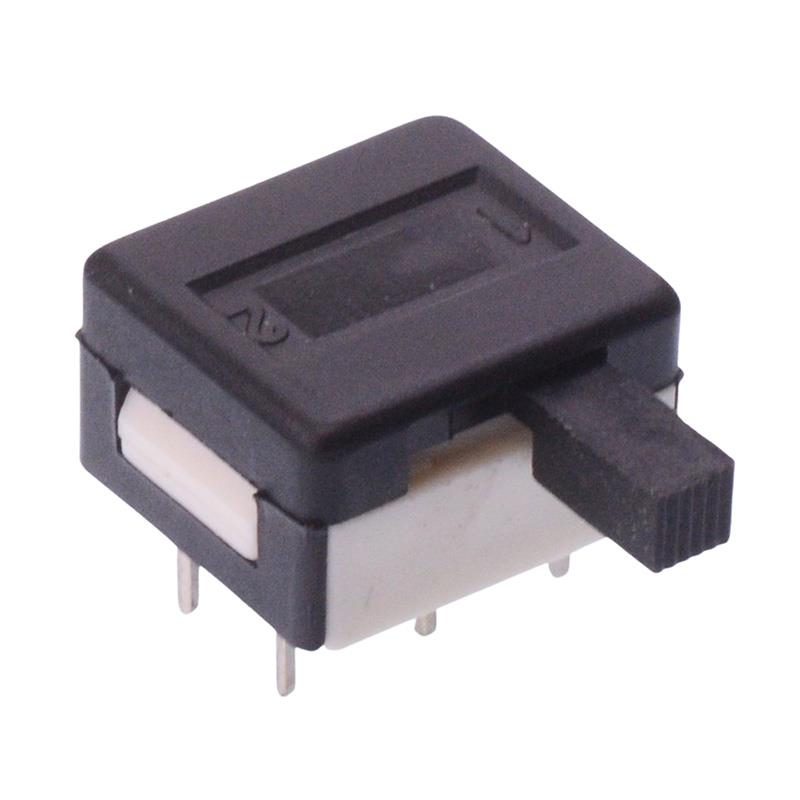

25546NA6 On-On Professional Horizontal PCB Slide Switch Long Actuator DPDT

25546NA6 On-On Professional Horizontal PCB Slide Switch Long Actuator DPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Electrical Life	10,000 Cycles
Material	PBT
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	5.08mm
Product Series	25000N
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	30VDC

Description

The 25546NA6 is a professional grade horizontal slide switch manufactured by socoje, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

DPDT contacts

On-On operation

5.08mm terminal spacing

Silver contacts

6mm long actuator

Rating: 1A 30VDC
