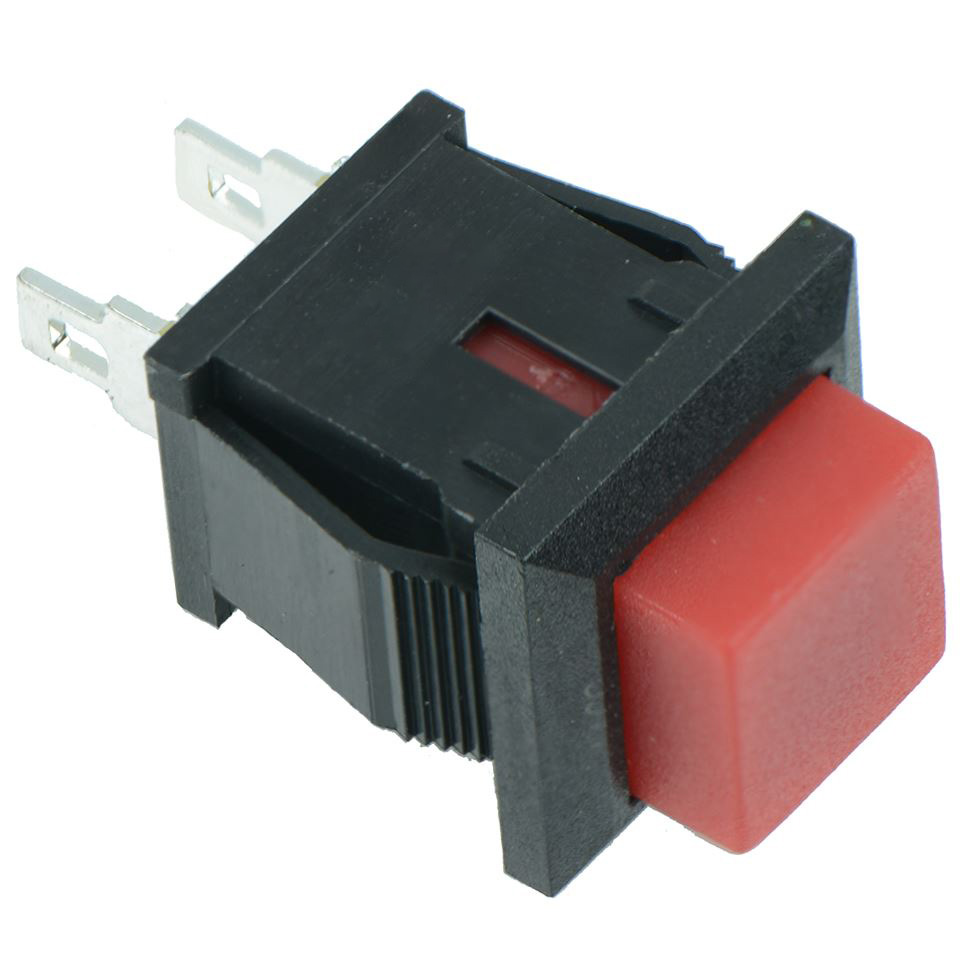

Red Square Momentary On-(Off) Push to Break Switch 1A SPST

Red Square Momentary On-(Off) Push to Break Switch 1A SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	1A 125VAC
Current Rating	1A
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Operating Temperature	0°C to +65°C
Panel Cut Out	12.4 x 11.0mm
Switch Operation	On-(Off)
Terminal Type	Solder
Voltage Rating	125VAC

Description

Red Square Momentary On-(Off) Push to Break Switch 1A SPST

Square push to break switch featuring SPST contacts and snap-in mounting.

On-(Off) push to break operation

Rating: 1A 125VAC

SPST contacts

Panel cut-out: 12.4 x 11mm

Red actuator

Nylon 94V-2 housing

Dimensions: 24.9 x 14 x 14mm (H x W x L)
