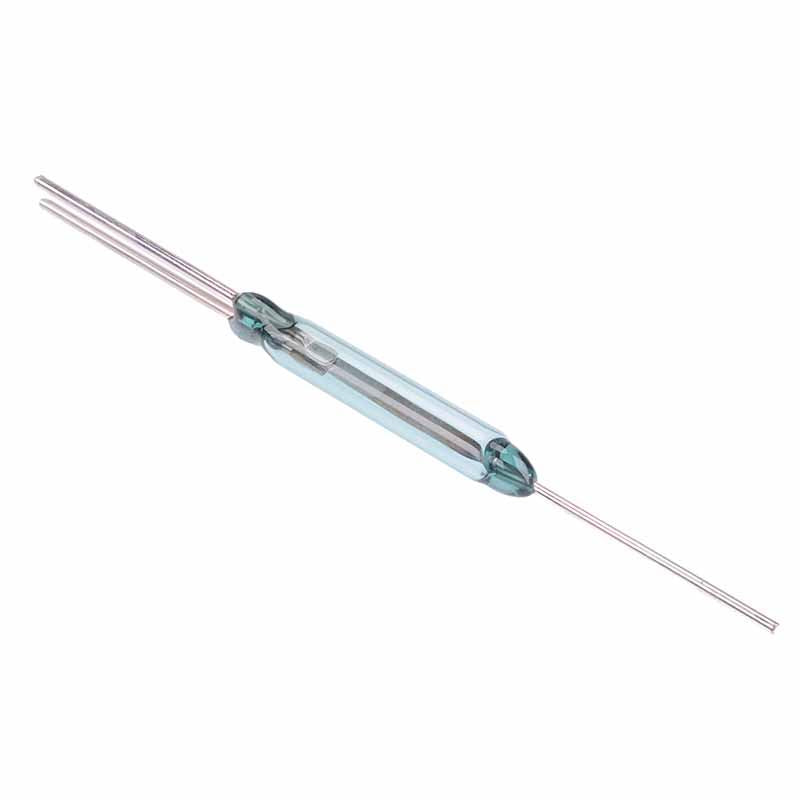

SPDT Reed Switch 0.5A 100VDC

SPDT Reed Switch 0.5A 100VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	1ms
Diameter	4mm
Carry Current	2A
Length	36mm
Contact Configuration	SPDT
Maximum Switching Current	0.5A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	100VDC
Material	Rhodium
Pull In Sensitivity	40-80AT
Release Time	0.5ms
Operating Temperature	-10°C to +70°C

Description

Reed switch featuring 0.5A maximum switching current and SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPDT

Dimensions: 4 x 36mm (diameter x length)

Maximum switching voltage: 100VDC

Maximum switching current: 0.5A

Pull-In value: 40-80AT

Download
