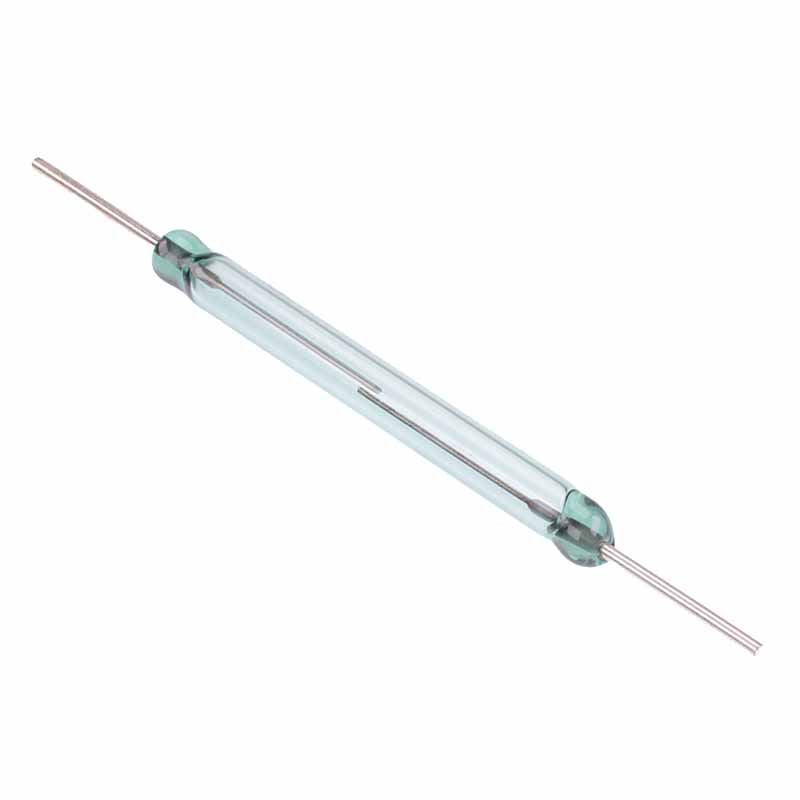

SPST-NO Reed Switch 1A 100VDC

SPST-NO Reed Switch 1A 100VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	1ms
Diameter	5mm
Carry Current	3A
Length	50mm
Contact Configuration	SPST-NO
Maximum Switching Current	1A
Drop Out Sensitivity	25AT Min
Maximum Switching Voltage	100VDC
Material	Rhodium
Pull In Sensitivity	80-130AT
Release Time	0.5ms
Operating Temperature	-10°C to +70°C

Description

Reed switch featuring 1A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPNO

Dimensions: 5 x 50mm (diameter x length)

Maximum switching voltage: 100VDC

Maximum switching current: 1A

Pull-In value: 80-130AT
