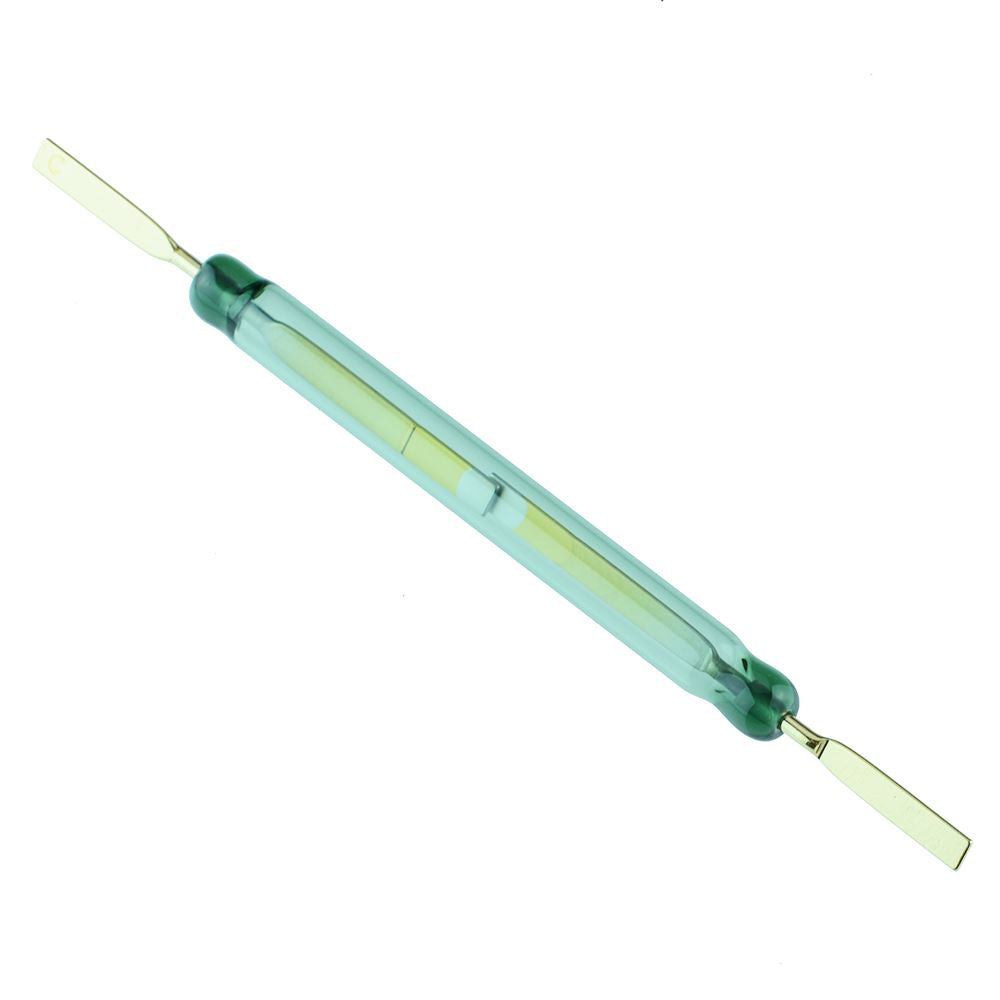

SPST-NO Reed Switch 3A 1.5kV - 2202-1513-060

SPST-NO Reed Switch 3A 1.5kV - 2202-1513-060 1

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	5.4mm
Carry Current	5A
Length	52mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	120VA
Maximum Switching Current	3A
Drop Out Sensitivity	30AT Min
Maximum Switching Voltage	1500VAC/DC
Material	Rhodium
Pull In Sensitivity	50-95AT
Release Time	0.2ms
Operating Temperature	-40°C to +125°C

Description

2202-1513-060 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 1500V AC/DC

Maximum switching current: 3A

Maximum switching power: 120VA

Pull-in sensitivity: 50-95AT
