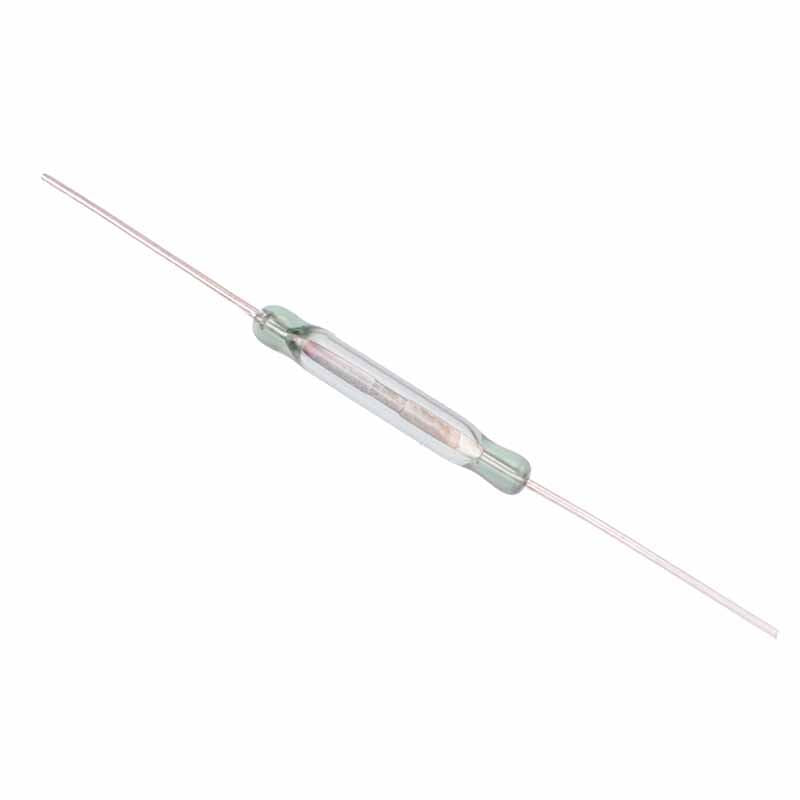

SPST-NO Reed Switch 0.1A 30VDC

SPST-NO Reed Switch 0.1A 30VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	1ms
Diameter	3mm
Carry Current	0.3A
Length	20mm
Contact Configuration	SPST-NO
Maximum Switching Current	0.1A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	30VDC
Material	Rhodium
Pull In Sensitivity	40-70AT
Release Time	1ms
Operating Temperature	-10°C to +60°C

Description

Reed switch featuring 0.1A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPNO

Dimensions: 3 x 20mm (diameter x length)

Maximum switching voltage: 30VDC

Maximum switching current: 0.1A

Pull-In value: 40-70AT
