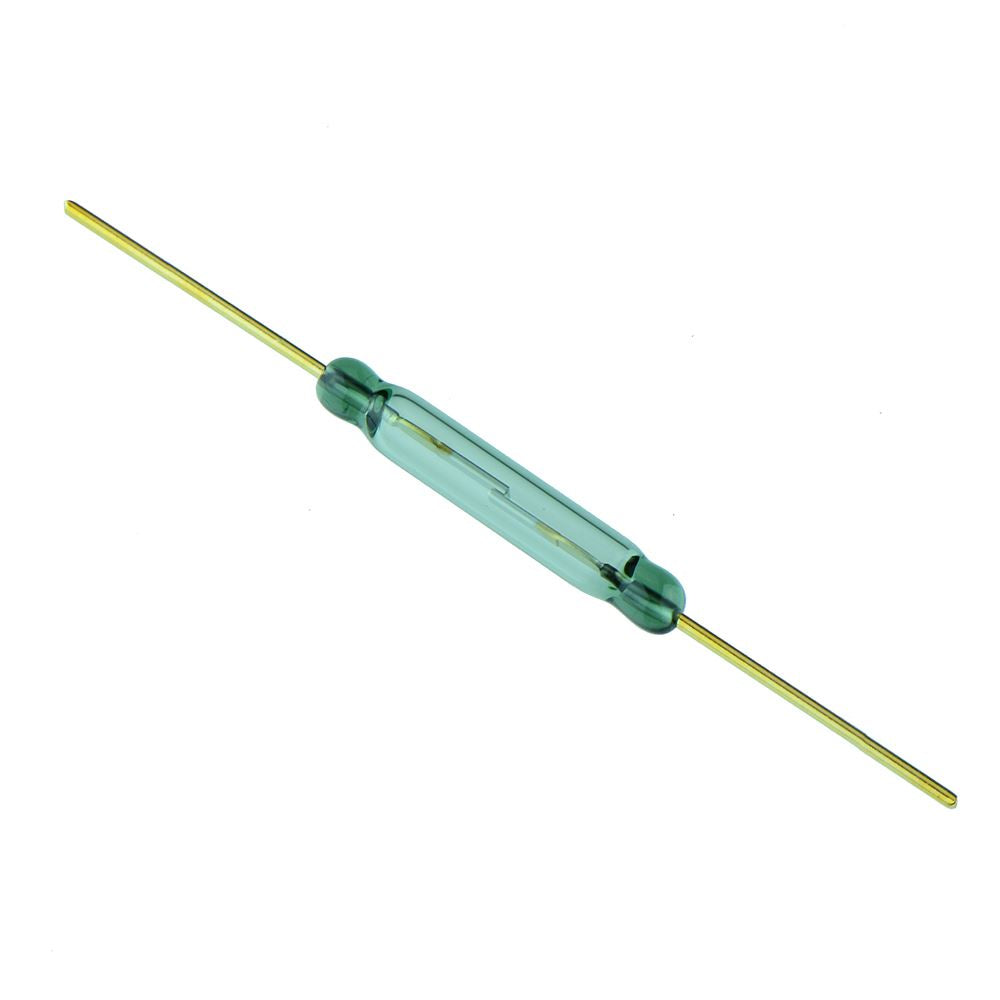

SPST-NO Reed Switch 3A 230V - 2204-3823-050

SPST-NO Reed Switch 3A 230V - 2204-3823-050 1

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	3.8mm
Carry Current	4A
Length	24.5mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	60W/VA
Maximum Switching Current	3A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	230VAC/DC
Material	Rhodium
Pull In Sensitivity	30-80AT
Release Time	0.1ms
Operating Temperature	-40°C to +125°C

Description

2204-3823-050 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 230V AC/DC

Maximum switching current: 3A

Maximum switching power: 60W/VA

Pull-in sensitivity: 30-80AT
