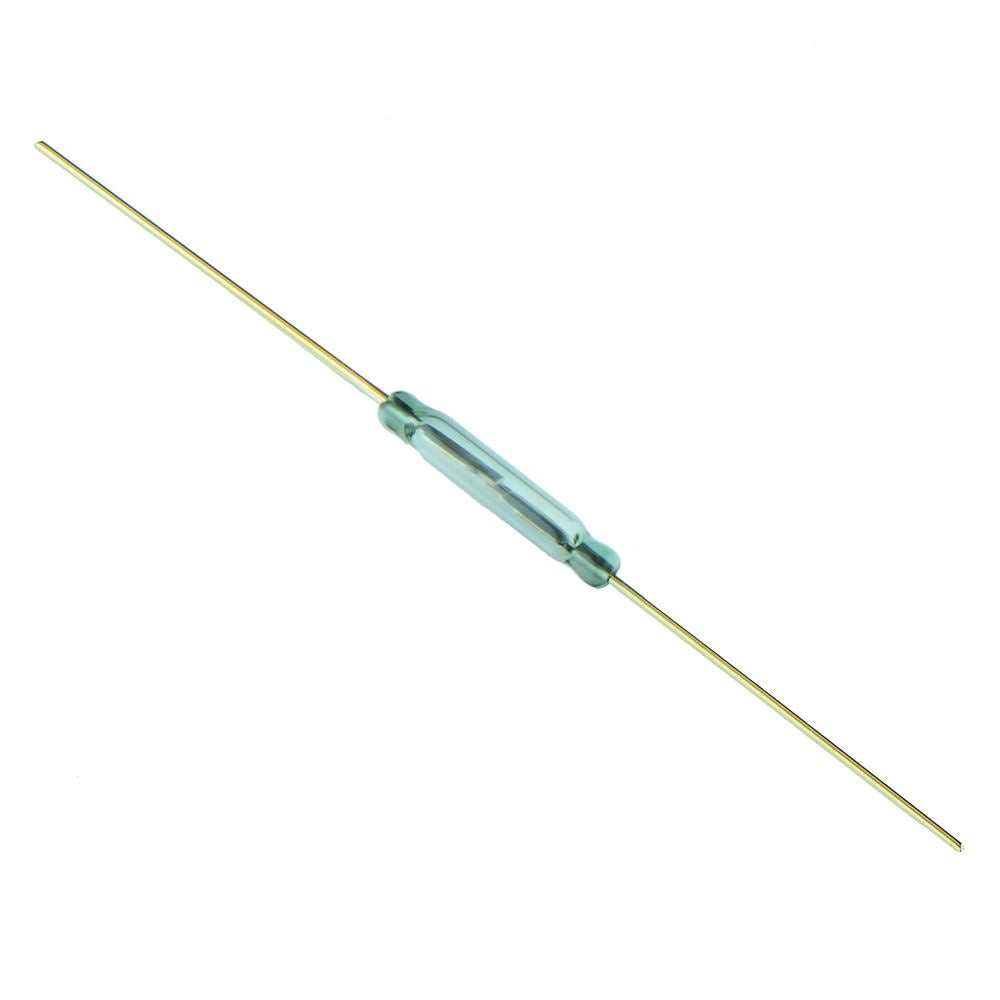

SPST-NO Reed Switch 500mA 400V - 2502-2314-020

SPST-NO Reed Switch 500mA 400V - 2502-2314-020 1

Buy Now

Specifications

Attributes List
Bounce Time	0.2ms
Diameter	2.3mm
Carry Current	1A
Length	14.5mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	10VA
Maximum Switching Current	0.5A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	400VAC/DC
Material	Rhodium
Pull In Sensitivity	10-35AT
Release Time	0.05ms
Operating Temperature	-40°C to +125°C

Description

2502-2314-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 400V AC/DC

Maximum switching current: 0.5A

Maximum switching power: 10VA

Pull-in sensitivity: 10-35AT
