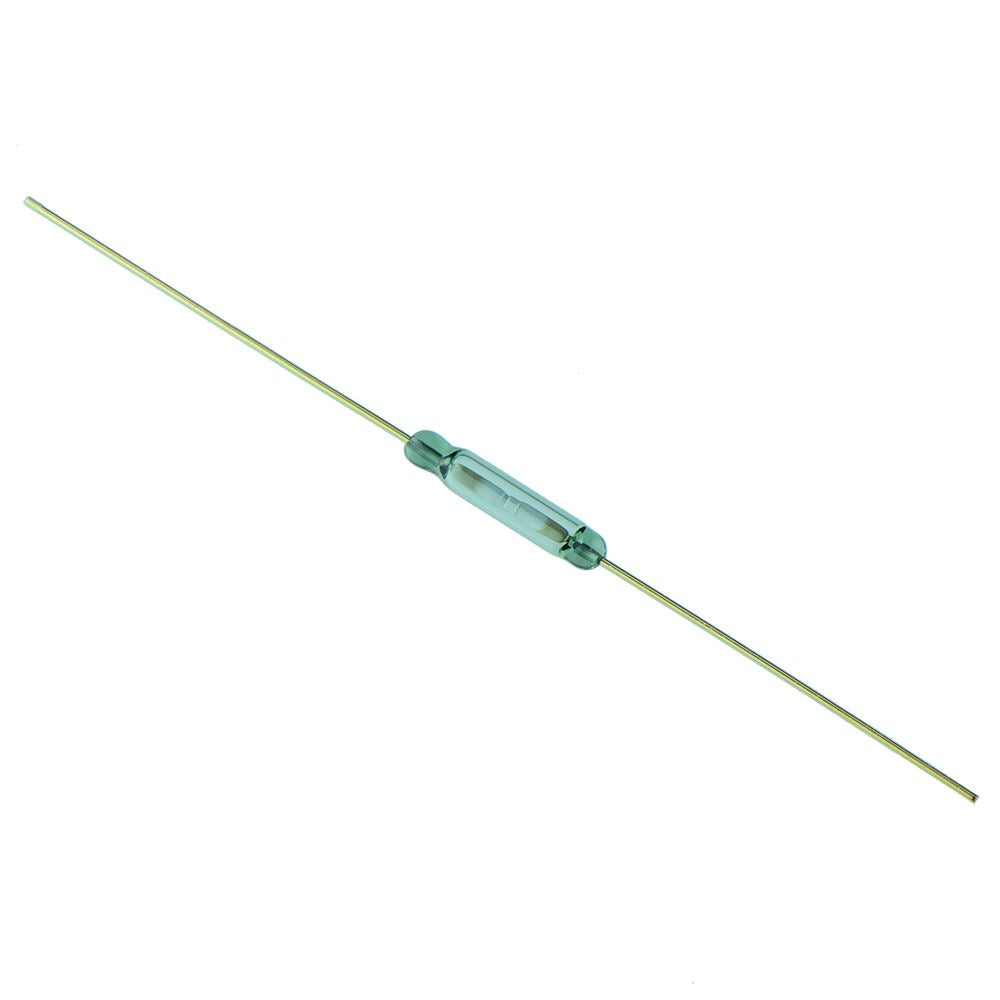

SPST-NO Reed Switch 500mA 140V - 2502-2522-020

SPST-NO Reed Switch 500mA 140V - 2502-2522-020 1

Buy Now

Specifications

Attributes List
Bounce Time	0.3ms
Diameter	2.1mm
Carry Current	0.8A
Length	11mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	6VA
Maximum Switching Current	0.5A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	140VAC/DC
Material	Rhodium
Pull In Sensitivity	10-40AT
Release Time	0.05ms
Operating Temperature	-40°C to +125°C

Description

2502-2322-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 140V AC/DC

Maximum switching current: 0.5A

Maximum switching power: 6VA

Pull-in sensitivity: 10-40AT
