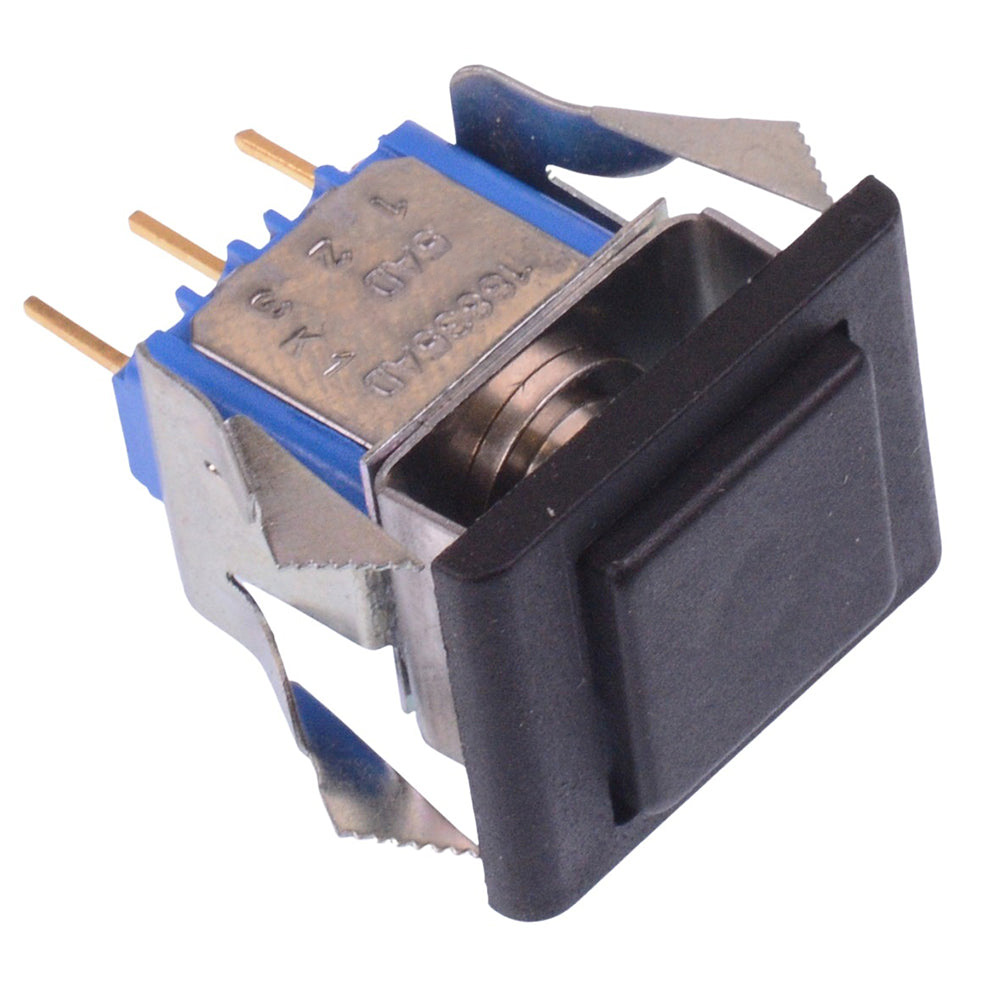

Black On-(On) Momentary Panel Mount Push Button Switch SPDT 1A 30VDC 18835ADX662

Black On-(On) Momentary Panel Mount Push Button Switch SPDT 1A 30VDC 18835ADX662 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPDT
Contact Material	Gold Plated Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	6.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

Black On-(On) Momentary Panel Mount Push Button Switch SPDT 1A 30VDC 18835ADX662

The 18835ADX662 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB and panel mount applications.

On-(On) momentary operation

SPDT contacts

Rating: 1A 30VDC

Panel cut-out: 15 x 12.5mm

Solder PCB terminals

Gold plated silver contacts

2.5mm max panel thickness

Black button

Terminal pitch: 4.7mm
