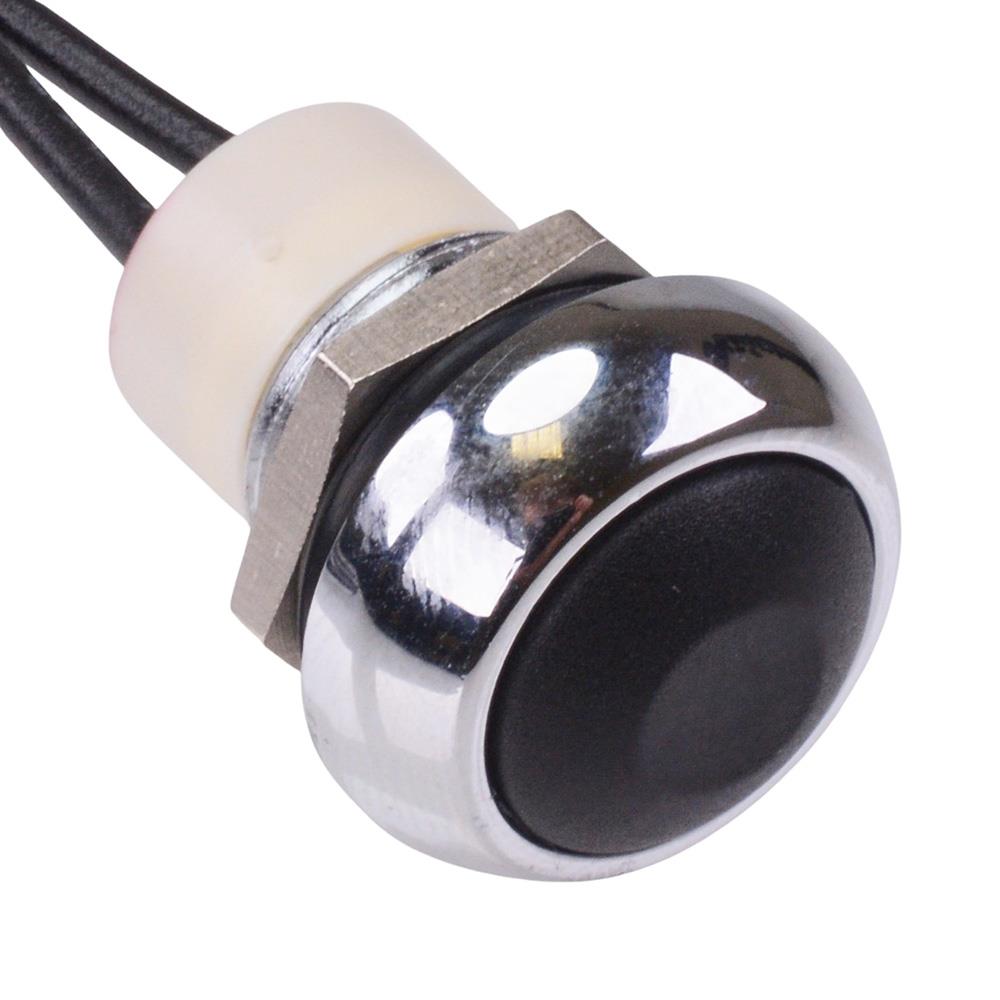

Chrome Momentary 12mm Push Button Switch Prewired SPST IP67 ICR3FAD2101

Chrome Momentary 12mm Push Button Switch Prewired SPST IP67 ICR3FAD2101 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
Current Rating	5A 28VDC
Illuminated	No
Electrical Life	500,000 Cycles
Illumination Colour	Non Illuminated
Material	Thermoplastic
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-4mm
Product Series	IC
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	48VAC/DC

Description

Chrome Momentary 12mm Push Button Switch Prewired SPST IP67 ICR3FAD2101

The ICR3FAD2101 is a chrome bezel momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm chrome bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Rating: 5A 28VDC

Panel thickness: 1.5-4mm

Dimensions: 21 x 17.5mm (length x diameter)
