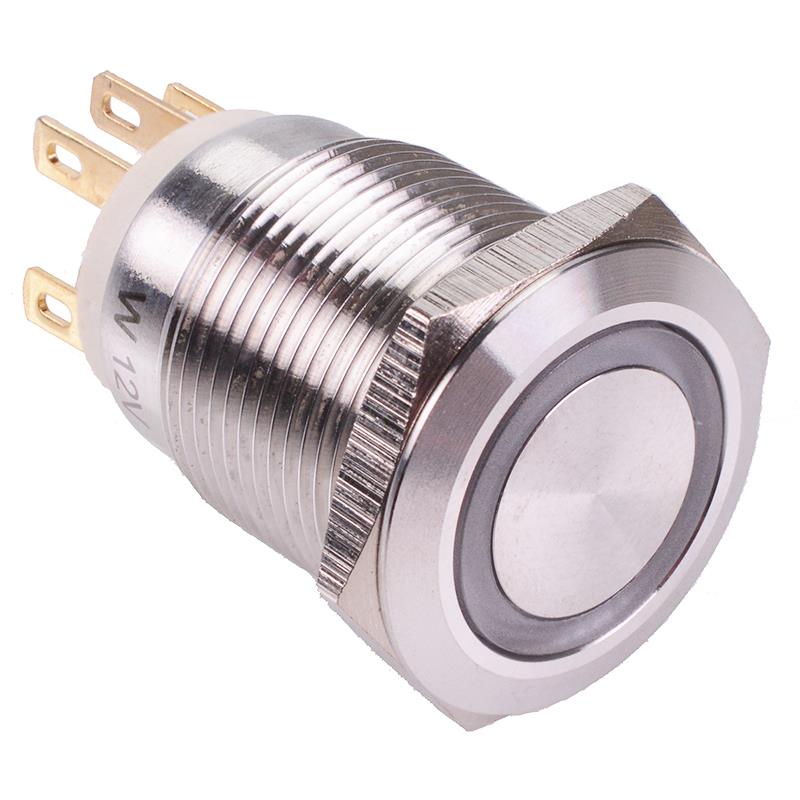

White LED On-(On) Momentary 19mm Vandal Resistant Push Switch

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	White
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	19mm
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Vandal resistant momentary push button switch manufactured from stainless steel, featuring a white LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.

Momentary On-(On) action

White LED

12V illumination voltage

IP65 protection rating

19mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 5A 250VAC
