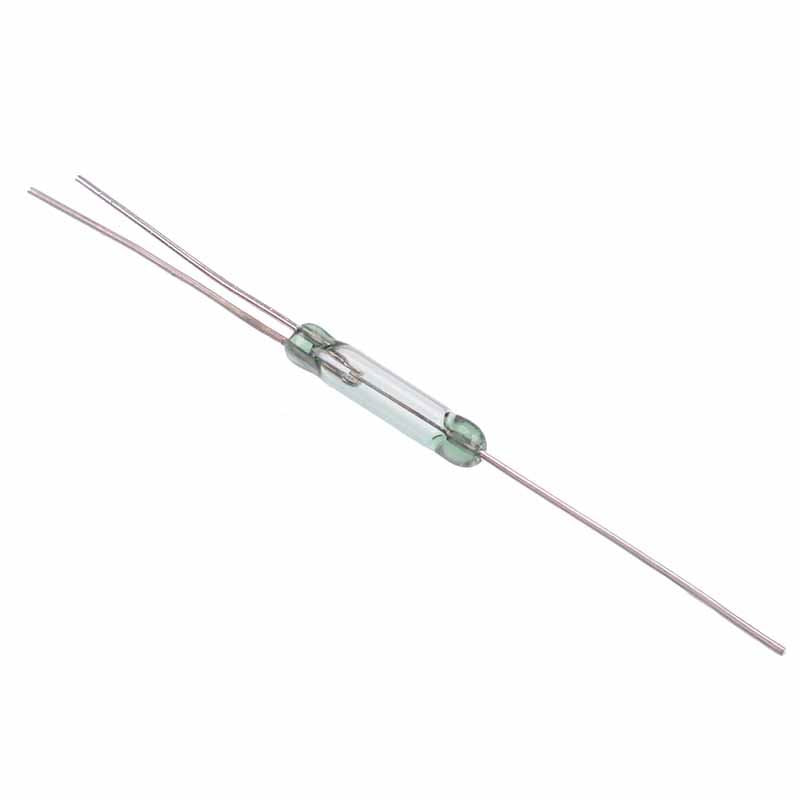

Miniature SPDT Reed Switch 50mA 24VDC

Miniature SPDT Reed Switch 50mA 24VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	0.4ms
Diameter	2.5mm
Carry Current	0.1A
Length	16mm
Contact Configuration	SPDT
Maximum Switching Current	0.05A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	24VDC
Material	Rhodium
Pull In Sensitivity	10-25AT
Release Time	0.2ms
Operating Temperature	-10°C to +60°C

Description

Miniature reed switch featuring SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPDT

Dimensions: 2.5 x 16mm (diameter x length)

Maximum switching voltage: 24VDC

Maximum switching current: 50mA

Pull-In value: 10-25AT
