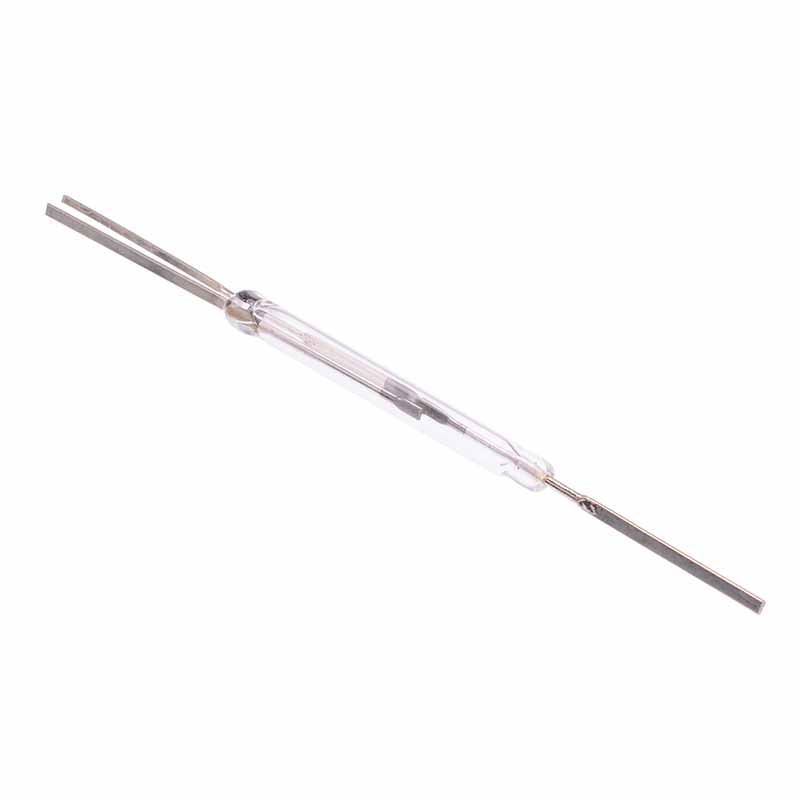

SPDT Reed Switch 0.3A 60VDC

SPDT Reed Switch 0.3A 60VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	1ms
Diameter	4mm
Carry Current	1A
Length	36mm
Contact Configuration	SPDT
Maximum Switching Current	0.3A
Drop Out Sensitivity	12AT Min
Maximum Switching Voltage	60VDC
Material	Rhodium
Pull In Sensitivity	45-65AT
Release Time	0.5ms
Operating Temperature	-10°C to +70°C

Description

Reed switch featuring 0.3A maximum switching current and SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPDT

Dimensions: 4 x 36mm (diameter x length)

Maximum switching voltage: 60VDC

Maximum switching current: 0.3A

Pull-In value: 45-65AT
