5mm Cylindrical Reed Switch SPST-NO 500mA 140V - S1372

5mm Cylindrical Reed Switch SPST-NO 500mA 140V - S1372 1

Buy Now

Specifications

Attributes List
Diameter	3.5mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	10VA
Maximum Switching Current	0.5A
Maximum Switching Voltage	140VAC
Material	Polypropylene
Operating Temperature	-20°C to +85°C

Description

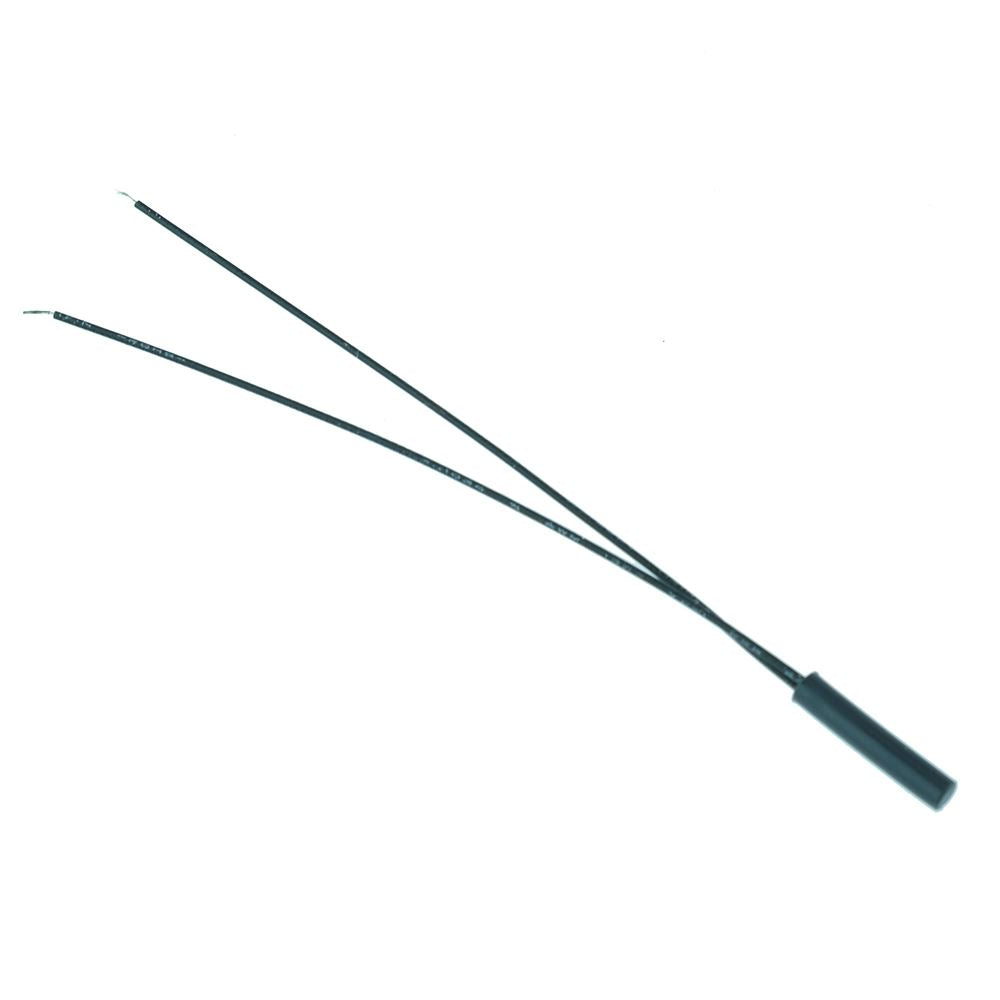

The S1372 is a cylindrical reed switch featuring normally open contacts and a polypropylene case. Suitable for position or limit sensing applications.

Suggested magnet: PRM

Normally open contacts

Maximum switching voltage: 140VAC

Maximum switching current: 0.5A

Maximum switching capacity: 10VA

Switching distance: 3mm Min

2 x round 0.22mm² PVC insulated wire
