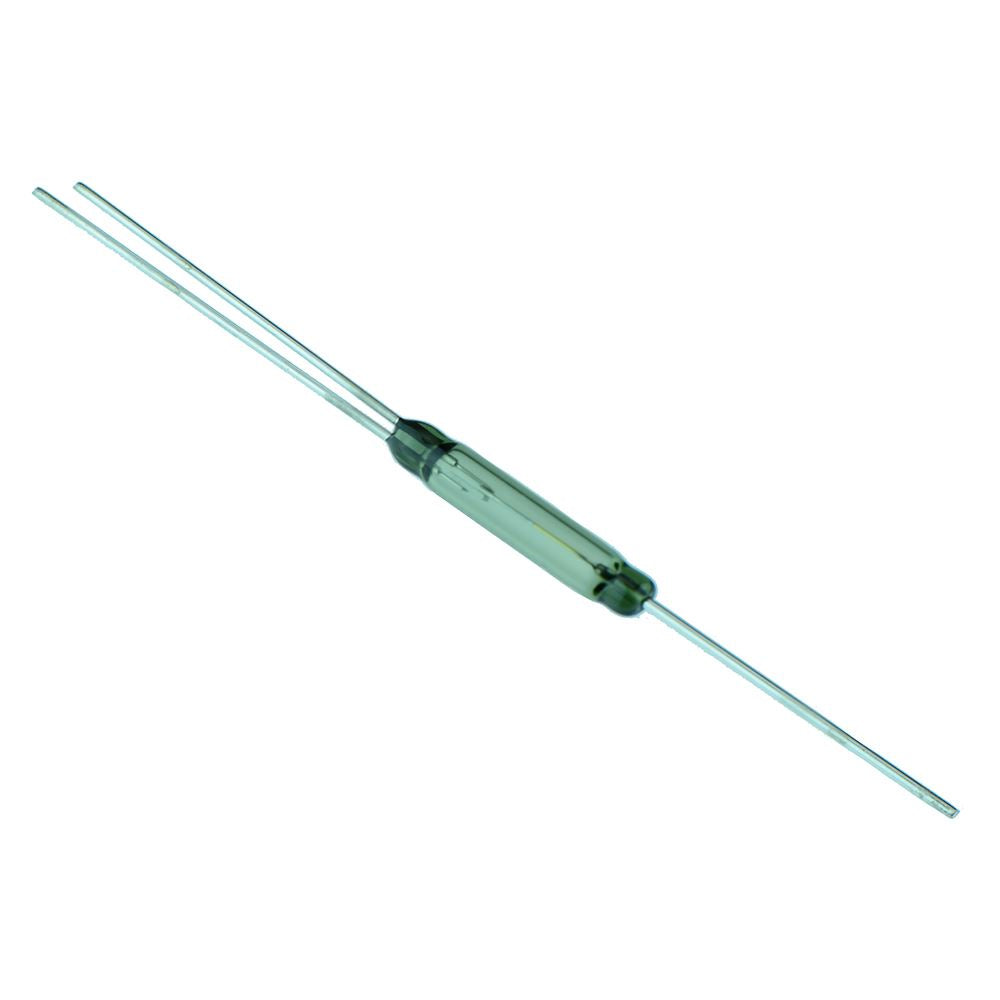

SPDT Reed Switch 400mA 175VDC - RI-90B
from
$4.25
Ex Tax: $4.25
10 or more $3.78
25 or more $3.58
50 or more $3.35
100 or more $3.19
- Stock: In Stock
- Model: SCJ010363
- SKU: SCJ010363
Products Sold: 0
Product Views: 475
Ask a Question About This Product
- Description
The RI-90B ultra-micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open contact and a normally closed contact. The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Ideal for ATE switching and proximity sensors Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 5W Maximum switching voltage: 175VDC, 125VAC Maximum switching current: 400mA/DC 280mA/AC Operating range: 20-25AT
